M3CCA-1036R

Active

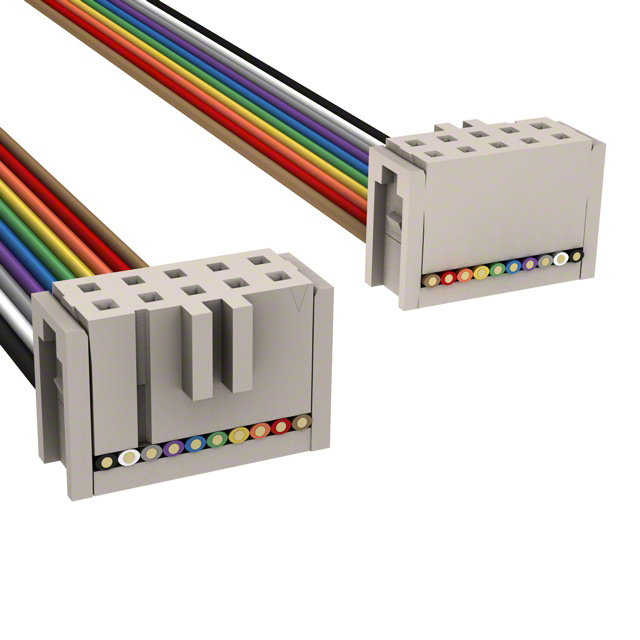

IDC CABLE - MKC10A/MC10M/MKC10A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 891 Series Datasheet +1

M3CCA-1036R

Active

IDC CABLE - MKC10A/MC10M/MKC10A

Deep-Dive with AI

DocumentsDatasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.77
		10	$ 6.72
		25	$ 6.07
		50	$ 5.63
		100	$ 5.23
		250	$ 4.75
		500	$ 4.43
		1000	$ 4.14
		2500	$ 3.86

Description

General part information

M3CCA Series

10 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)

Documents

Technical documentation and resources

Datasheet

891 Series Datasheet

Datasheet

3302 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3CCA-1036R	M3CCA Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length	-	1.52 - 508 mm
Length	-	1.67 - 5 ft
Length	-	6 "
Length	-	0.5 '
Length [x]	3 ft	1.5 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 m
Number of Positions	10	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3CCA Series

IDC CABLE - MKC10A/MC10F/MKC10A

Part	Connector Type	Color	Length [x]	Length [x]	Cable Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Shielding	Pitch - Cable	Pitch - Cable	Features	Pitch - Connector	Pitch - Connector	Number of Rows	Number of Positions	Length	Length	Length	Length
3M M3CCA-1040K	Socket to Socket	Multiple, Twisted Pair (Flat)	1.02 m	3.34 ft	IDC	Gold	0.76 Ám	30 Áin	10	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2
3M M3CCA-1640K	Socket to Socket	Multiple, Twisted Pair (Flat)	1.02 m	3.34 ft	IDC	Gold	0.76 Ám	30 Áin		Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2	16
3M M3CCA-5036J	Socket to Socket		914.4 mm	3 ft	IDC	Gold	0.76 Ám	30 Áin	50	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2
3M M3CCA-2620K	Socket to Socket	Multiple, Twisted Pair (Flat)			IDC	Gold	0.76 Ám	30 Áin	26	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2		508 mm	1.67 ft
3M M3CCA-3036J	Socket to Socket		914.4 mm	3 ft	IDC	Gold	0.76 Ám	30 Áin	30	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2
3M M3CCA-4020K	Socket to Socket	Multiple, Twisted Pair (Flat)			IDC	Gold	0.76 Ám	30 Áin	40	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2		508 mm	1.67 ft
3M M3CCA-2418J	Socket to Socket		457.2 mm	1.5 ft	IDC	Gold	0.76 Ám	30 Áin	24	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2
3M M3CCA-1418R	Socket to Socket	Multiple, Ribbon	457.2 mm	1.5 ft	IDC	Gold	0.76 Ám	30 Áin	14	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2
3M M3CCA-1006J	Socket to Socket				IDC	Gold	0.76 Ám	30 Áin	10	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2		152.4 mm		6 "	0.5 '
3M M3CCA-3436R	Socket to Socket	Multiple, Ribbon	914.4 mm	3 ft	IDC	Gold	0.76 Ám	30 Áin	34	Unshielded	0.05 "	1.27 mm	Polarizing Key	0.1 in	2.54 mm	2
