Description
General part information

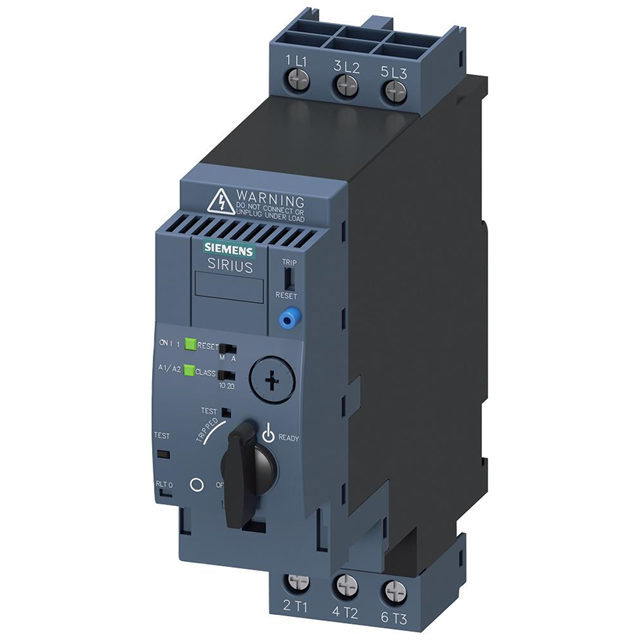

3RA61201CB34
Motor Starter 24VAC/DC Supply 4A 690V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RA61201CB34 |
|---|---|
| Control / Drive Type | Motor Starter |
| Current - Output | 4 A |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Module |
| Voltage - Load | 690 V |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
| Wattage - Load | 2.237 kW |
