Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC510COG713 | TC510 Series |
|---|---|---|
| Mounting Type | - | Surface Mount, Through Hole |
| null | - | |
| Number of Bits | - | 17 |
| Number of Channels | - | 1 |
| Package / Case | - | 7.5 mm |
| Package / Case | - | 24-SOIC, 24-DIP |
| Package / Case | - | 0.295 in |
| Package / Case | - | 0.3 in |
| Package / Case | - | 7.62 mm |
| Power (Watts) | - | 18 mW |
| Supplier Device Package | - | 24-SOIC, 24-SPPDIP |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.49 | |
| 25 | $ 5.43 | |||
| 100 | $ 4.93 | |||
| Digi-Reel® | 1 | $ 6.49 | ||
| 25 | $ 5.43 | |||
| 100 | $ 4.93 | |||
| Tape & Reel (TR) | 1000 | $ 4.93 | ||
TC510 Series

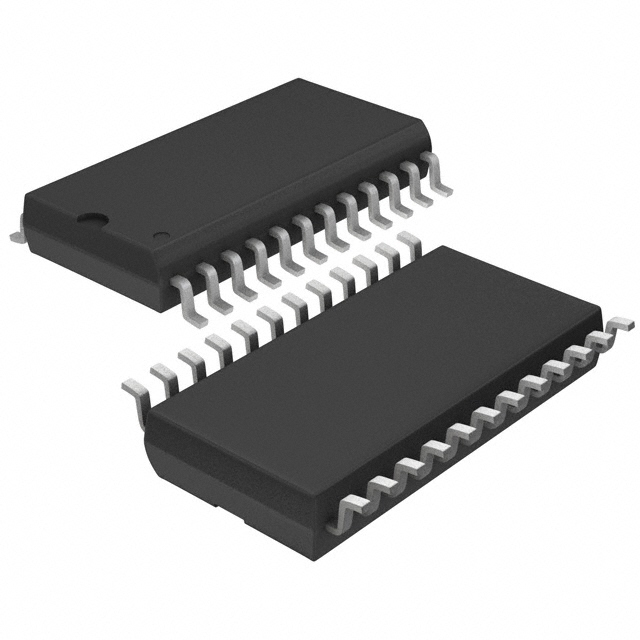

IC AFE 1 CHAN 17BIT 24SOIC
| Part | Mounting Type | Voltage - Supply, Digital | Voltage - Supply, Analog | Number of Channels | Number of Bits | Package / Case [custom] | Package / Case | Package / Case [custom] | Power (Watts) | Supplier Device Package | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TC510COG | Surface Mount | 5 V | 5 V | 1 | 17 | 7.5 mm | 24-SOIC | 0.295 in | 18 mW | 24-SOIC | ||
Microchip Technology TC510COG713 | Surface Mount | 5 V | 5 V | 1 | 17 | 7.5 mm | 24-SOIC | 0.295 in | 18 mW | 24-SOIC | ||
Microchip Technology TC510CPF | Through Hole | 5 V | 5 V | 1 | 17 | 24-DIP | 18 mW | 24-SPPDIP | 0.3 in | 7.62 mm | ||
Microchip Technology TC510COG713 | ||||||||||||
Microchip Technology TC510COG713 |
Description
General part information
TC510 Series
Precision (up to 17 bits) A/D Converter "Front End"
3-Pin Control Interface to Microprocessor
Flexible: User Can Trade-off Conversion Speed for Resolution
