9536 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER, SHIELDED, 6 CONDUCTOR, 24 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9536 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER, SHIELDED, 6 CONDUCTOR, 24 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9536 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.209 in
Jacket (Insulation) Diameter [diameter]	5.31 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

9536 Series

Part	Wire Gauge	Shield Material	Voltage	Length	Length	Cable Type	Shield Type	Number of Conductors	Features	Ratings	Conductor Insulation	Jacket Color	Usage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Material	Length [x]	Length [x]
Belden Inc. 9536 060U1000	24 AWG	Aluminum	300 V	1000 ft	304.8 m	Multi-Conductor	Foil	6	Drain Wire	UL Style 2464	Poly-Vinyl Chloride (PVC)	Chrome	Computer	Poly-Vinyl Chloride (PVC)	32 AWG	7	-30 ░C	80 C	0.209 in	5.31 mm	100 %	Copper Tinned
Belden Inc. 9536 0605000	24 AWG	Aluminum	300 V			Multi-Conductor	Foil	6	Drain Wire	UL Style 2464	Poly-Vinyl Chloride (PVC)	Chrome	Computer	Poly-Vinyl Chloride (PVC)	32 AWG	7	-30 ░C	80 C	0.209 in	5.31 mm	100 %	Copper Tinned
Belden Inc. 9536 060100	24 AWG	Aluminum				Multi-Conductor	Foil	6	Drain Wire		Poly-Vinyl Chloride (PVC)	Chrome	Computer	Poly-Vinyl Chloride (PVC)	32 AWG	7	-30 ░C	80 C	0.209 in	5.31 mm	100 %	Copper Tinned	30.5 m	100 ft
Belden Inc. 9536 060U500	24 AWG	Aluminum	300 V			Multi-Conductor	Foil	6	Drain Wire	UL Style 2464	Poly-Vinyl Chloride (PVC)	Chrome	Computer	Poly-Vinyl Chloride (PVC)	32 AWG	7	-30 ░C	80 C	0.209 in	5.31 mm	100 %	Copper Tinned	152.4 m	500 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 292.39
		2	$ 278.08
		3	$ 269.98
		5	$ 260.06
		7	$ 253.69
		10	$ 247.07
		25	$ 230.69
Newark	Spool of 100	1	$ 298.31
		1	$ 298.31
		5	$ 286.77
		5	$ 286.77
		10	$ 276.88
		10	$ 276.88

Description

General part information

9536 Series

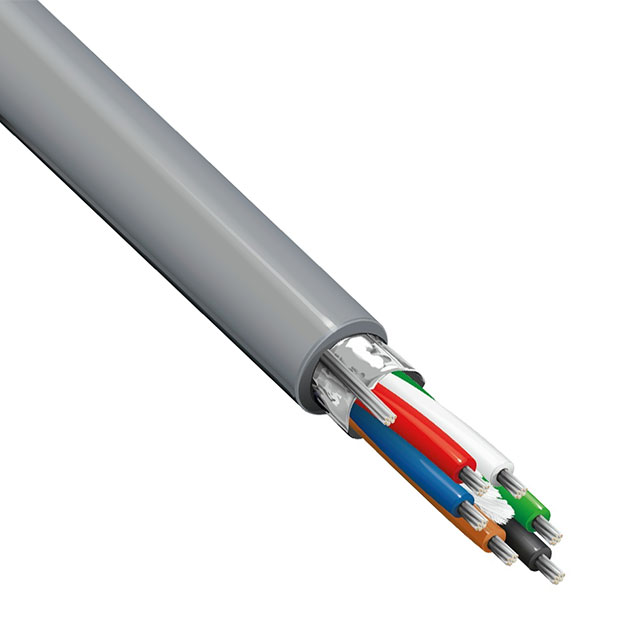

The 9536 060100 is a 6-conductor chrome shielded Computer Cable with PVC insulation, tinned copper drain wire, tinned copper conductors and PVC jacket. The computer cable features Beldfoil® aluminum foil-polyester tape with shorting fold shield (100% coverage).
