Specification	B41789A5458Q001

Applications	Automotive
Capacitance	4.5 mF
ESR (Equivalent Series Resistance)	23 mOhm
Height - Seated (Max)	2.028 in
Impedance	12 mOhm
Lead Spacing	0.846 in
Lifetime	10000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package Leads	3 Leads

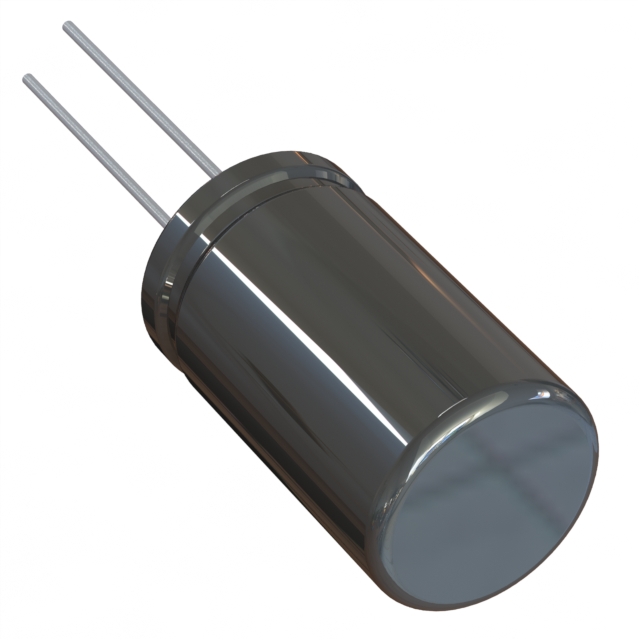

Package Name	Radial, Can - Snap-In
Polarization	Polar
Ripple Current	10 A
Size / Dimension Diameter	0.827 in
Tolerance (Negative)	10 %
Tolerance (Positive)	30 %
Voltage - Rated	25 VAC
