Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 35HDLSAU12 | 35HDLS Series |
|---|---|---|
| Actual Diameter [diameter] | 3.56 mm | 3.56 mm |
| Actual Diameter [diameter] | 0.14 in | 0.14 in |
| Body Color | Gold, Black | Silver, Black, Gold |
| Body Material | Copper Alloy | Copper Alloy |
| Cable Opening | - | 4.45 mm |
| Cable Opening | - | 0.21 in |
| Cable Opening | - | 5.33 mm |
| Cable Opening | - | 0.175 in |
| Cable Opening | - | 0.15 - 0.175 in |
| Cable Opening | - | 3.81 - 4.45 mm |
| Cable Opening [diameter] | 3.18 mm | 3.18 mm |
| Cable Opening [diameter] | 0.125 in, 0.15 in | 0.125 - 0.15 in |
| Cable Opening [diameter] | 3.81 mm | 3.81 mm |
| Connector Type | Phone Plug | Phone Plug |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating | - | Tin |
| Contact Material - Plating [custom] | Gold | Gold |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Sealed, Locking, Strain Relief | Sealed, Locking, Strain Relief |
| Gender | Male | Male |
| Housing Material | Copper Alloy | Copper Alloy |
| Includes | 1 Handle, 1 O-Ring, 1 Insulator Tube, 1 Connector | 1 Connector, 1 Insulator Tube, 1 Handle, 1 O-Ring |
| Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
| Internal Switch(s) | False | False |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Stereo | Stereo |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
35HDLS Series

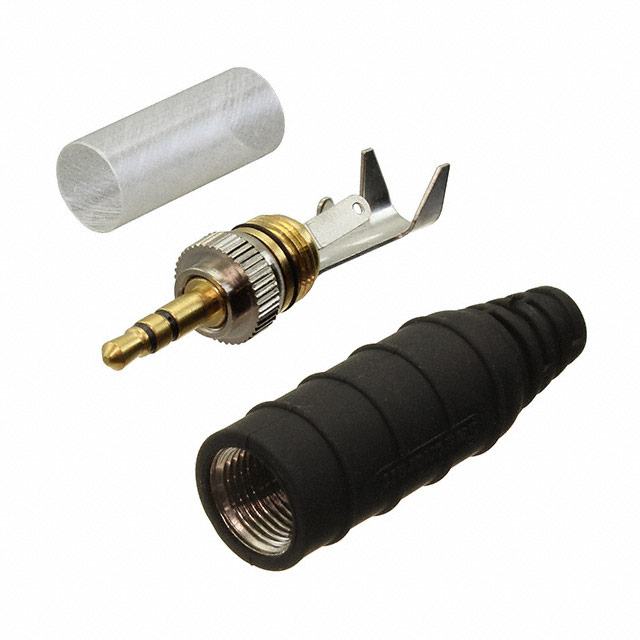

Phone Connectors 3.5mm Locking Blk Body Nickel Pin
| Part | Current Rating (Amps) | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Internal Switch(s) | Contact Material - Plating | Mounting Type | Body Color | Contact Material | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Shielding | Includes | Termination | Signal Lines | Housing Material | Gender | Actual Diameter [diameter] | Actual Diameter [diameter] | Features | Connector Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Cable Opening [custom] | Cable Opening [custom] | Contact Material - Plating [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35HDLSN17 | 4 A | Copper Alloy | 85 °C | -20 C | Tin | Free Hanging (In-Line) | Black, Silver | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 4.45 mm | 0.21 in | 5.33 mm | 0.175 in | 3 | 3 | |||||||
Switchcraft Inc. 35HDLSN15 | 4 A | Copper Alloy | 85 °C | -20 C | Tin | Free Hanging (In-Line) | Black, Silver | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 3 | 3 | 0.15 in, 0.175 in | 3.81 mm, 4.45 mm | |||||||||
Switchcraft Inc. 35HDLSAU17 | 4 A | Copper Alloy | 85 °C | -20 C | Free Hanging (In-Line) | Black, Gold | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 4.45 mm | 0.21 in | 5.33 mm | 0.175 in | 3 | 3 | Gold | |||||||
Switchcraft Inc. 35HDLSN12 | 4 A | Copper Alloy | 85 °C | -20 C | Tin | Free Hanging (In-Line) | Black, Silver | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 3 | 3 | 3.18 mm | 0.125 in, 0.15 in | 3.81 mm | ||||||||
Switchcraft Inc. 35HDLSAU12 | 4 A | Copper Alloy | 85 °C | -20 C | Free Hanging (In-Line) | Black, Gold | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 3 | 3 | Gold | 3.18 mm | 0.125 in, 0.15 in | 3.81 mm | ||||||||
Switchcraft Inc. 35HDLSAU15 | 4 A | Copper Alloy | 85 °C | -20 C | Free Hanging (In-Line) | Black, Gold | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Unshielded | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Stereo | Copper Alloy | Male | 3.56 mm | 0.14 in | Locking, Sealed, Strain Relief | Phone Plug | 3 | 3 | 0.15 in, 0.175 in | 3.81 mm, 4.45 mm | Gold |
