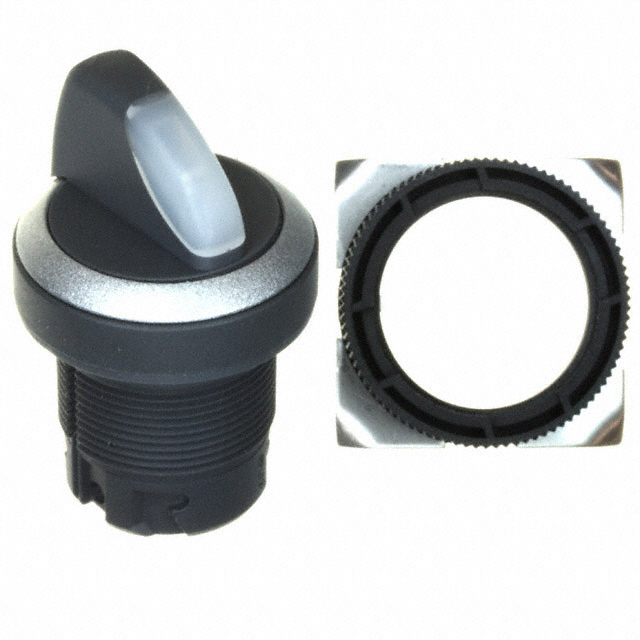

1.30.242.302/2200

Obsolete

RAFI USA

CONFIG SW BODY SELECTOR ILLUM

Search across all available documentation for this part.

Obsolete

RAFI USA

CONFIG SW BODY SELECTOR ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30.242.302/2200

(Select First, Then Apply Filters) Compatible Series	Rafix 22QR
Actuator Type	Selector
Illumination	Illuminated - White
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Requires	(Select First, Then Apply Filters) Compatible Series	Type	Illumination	Panel Cutout Dimensions	Actuator Type
RAFI USA 1.30.242.927/0200
RAFI USA 1.30.242.601/0201
RAFI USA 1.30.242.711/0208
RAFI USA 1.30.242.802/0200	Contact Block(s)	Rafix 22QR	Maintained	Non-Illuminated	22.3 mm	Selector
RAFI USA 1.30.242.602/0200	Contact Block(s)	Rafix 22QR	Maintained	Non-Illuminated	22.3 mm	Selector
RAFI USA 1.30.242.302/2200	Contact Block(s) Illumination Source	Rafix 22QR	Maintained	Illuminated - White	22.3 mm	Selector
RAFI USA 1.30.242.112/2200
RAFI USA 1.30.242.311/2207
RAFI USA 1.30.242.812/0200
RAFI USA 1.30.242.201/2201	Contact Block(s) Illumination Source	Rafix 22QR	Maintained	Illuminated - White	22.3 mm	Selector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Configurable Switch Body Selector Illuminated - White
