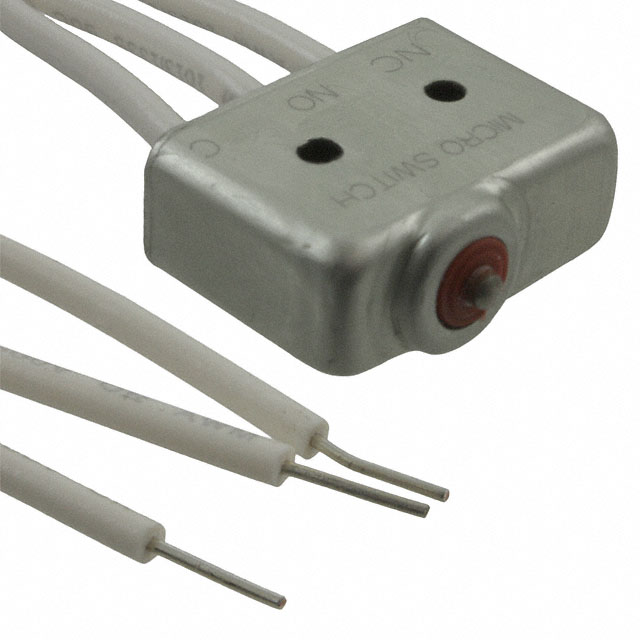

Specification	4SE1

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating	5 A
Differential Travel (Linear)	0.004 in
Ingress Protection	Waterproof
Mounting Type	Chassis Mount
Operating Force (Max)	482 gf
Operating Force (Min)	141 gf
Operating Position (Length)	0.425 in
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-54 °C
Overtravel (Linear)	0.003 in
Pretravel (Length)	0.05 in
Release Force	113 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	250 V

- Series

...

Part	Actuator Type	Current Rating	Circuit	Operating Force	Pretravel (Angle)	Operating Temperature (Max)	Operating Temperature (Min)	Overtravel (Angle)	Termination Style	Differential Travel (Angle)	Voltage Rating - AC	Voltage Rating - DC	Switch Function	Mounting Type	Actuator Marking	Approval Agency	Features	Color - Actuator/Cap	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Differential Travel (Linear)	Pretravel (Length)	Overtravel (Linear)	Release Force	Operating Position (Length)	Mechanical Life (Cycles)	Operating Force (Min)	Operating Force (Max)
Honeywell Sensing and Productivity Solutions LSN6B	No Lever Side Rotary	10 A 800 mA	DPDT (DB/DM)	46 gfm	65 °	121 °C	-1 °C	20 °	Plug In	40 °	120 V	115 V	On-On	Chassis Mount
Honeywell Sensing and Productivity Solutions 1TP4-6	Concave (Curved)	10 A	SPST-NO			71 °C	-54 °C		Screw Terminal		125 V		Off-Mom	Flange Panel Mount	No Marking	CE CSA UKCA UL	Sealed	Clear	38.4 mm	Rectangular	23.9 mm
Honeywell Sensing and Productivity Solutions LSE4L	Side Plunger	10 A 800 mA	DPDT (DB/DM)	2720 gf		93 °C	-12 °C		Screw Terminal		120 V	115 V	On-Mom	Chassis Mount								0.035 in	0.1 in	0.19 in
Honeywell Sensing and Productivity Solutions 4TP1-3	Concave (Curved)	15 A	4PDT			71 °C	-54 °C		Screw Terminal		125 V		On-On	Flange Panel Mount	No Marking	CE CSA UKCA UL	Sealed	Clear
Honeywell Sensing and Productivity Solutions LSB1A	No Lever Top Rotary	10 A 800 mA	SPDT (DB/DM)	28 gfm	25 °	121 °C	-1 °C	110 °	Plug In	10 °	120 V	115 V	On-Mom	Chassis Mount
Honeywell Sensing and Productivity Solutions 4SX5-T	Round (Pin Plunger)		SPDT			125 °C	-55 °C		Solder Turret				On-Mom	Chassis Mount
Honeywell Sensing and Productivity Solutions LSC2B	Round (Pin Plunger)	10 A 800 mA	DPDT (DB/DM)	1814 gf		93 °C	-12 °C		Plug In		120 V	115 V	On-Mom	Chassis Mount								0.02 in	0.071 in	0.19 in
Honeywell Sensing and Productivity Solutions LSH9A	No Lever Side Rotary	10 A 800 mA	SPDT (DB/DM)	19 gfm	9 °	121 °C	-1 °C	66 °	Plug In	3 °	120 V	115 V	On-Mom	Chassis Mount			Status Indicator
Honeywell Sensing and Productivity Solutions LSP5A	No Lever Side Rotary	10 A 800 mA	SPDT (DB/DM)	46 gfm	9 °	121 °C	-12 °C	66 °	Plug In	3 °	120 V	115 V	On-Mom	Chassis Mount			Status Indicator
Honeywell Sensing and Productivity Solutions YZ-2R	Round (Pin Plunger)	0.5 A 15 A	SPST-NO			85 °C	-55 °C		Solder Lug		125 V	125 V	Off-Mom	Chassis Mount								0.002 in	0.015 in	0.005 in	113 gf	0.625 in	20000000 Cycles	255 gf	368 gf
