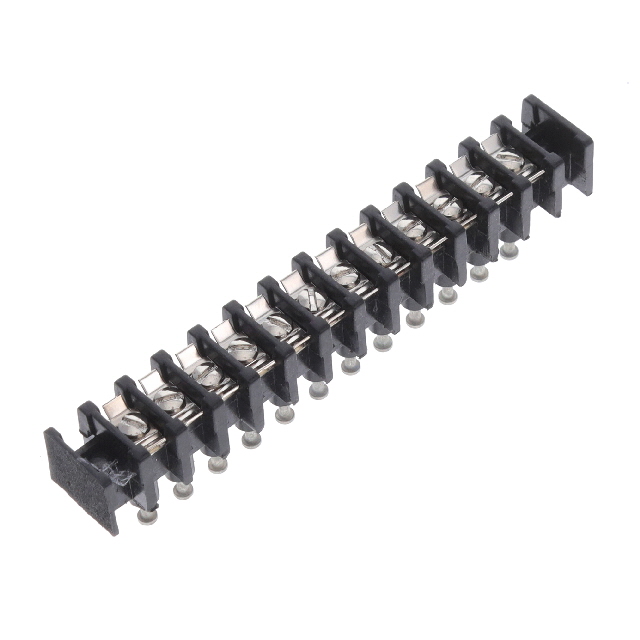

SEIFCX-12

Active

Curtis Industries

CONN BARRIER STRIP 12CIRC 0.25"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEIFCX-12

Active

Curtis Industries

CONN BARRIER STRIP 12CIRC 0.25"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SEIFCX Series

12 Circuit 0.250" (6.35mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SEIFCX-12	SEIFCX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated	Solder Turret, Insulated
Current Rating (Amps)	5 A	5 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	12	2 - 16
Number of Rows	1	1
Number of Wire Entries	12	2 - 16
Operating Temperature	110 °C	110 °C
Pitch [x]	0.25 in	0.25 in
Pitch [x]	6.35 mm	6.35 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Nickel	Nickel
Terminal Screw Material	Brass	Brass
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	16 AWG	16 AWG

SEIFCX Series

CONN BARRIER STRIP 16CIRC 0.25"

Part	Pitch [x]	Pitch [x]	Barrier Type	Current Rating (Amps)	Bottom Termination	Operating Temperature	Number of Wire Entries	Top Termination	Terminal Screw Finish	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits	Mounting Type	Terminal Screw Material	Features	Terminal Block Type	Material - Insulation	Number of Rows	Material Flammability Rating
Curtis Industries SEIFCX-16	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	16	Screws with Captive Plate	Nickel	22 AWG	16 AWG	16	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-6	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	6	Screws with Captive Plate	Nickel	22 AWG	16 AWG	6	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-2	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	2	Screws with Captive Plate	Nickel	22 AWG	16 AWG	2	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-12	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	12	Screws with Captive Plate	Nickel	22 AWG	16 AWG	12	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-10	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	10	Screws with Captive Plate	Nickel	22 AWG	16 AWG	10	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-7	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	7	Screws with Captive Plate	Nickel	22 AWG	16 AWG	7	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
