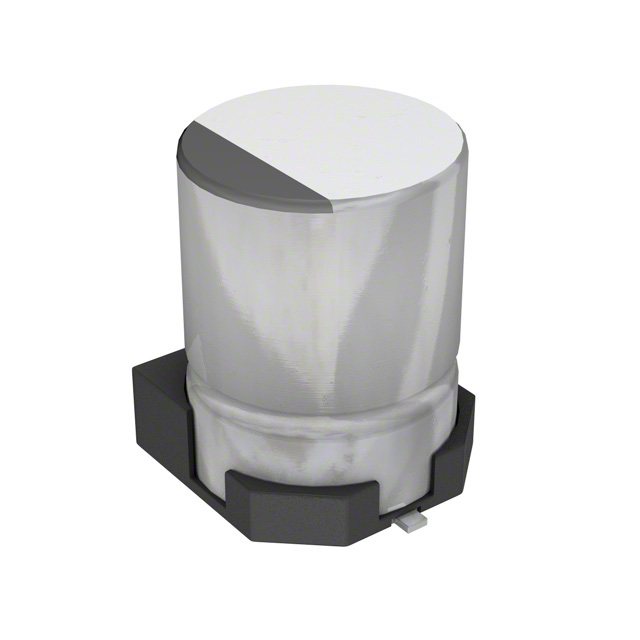

AVS475M35B12T-F
NRNDCornell Dubilier Knowles
CAP ALUM 4.7UF 20% 35V SMD
AVS475M35B12T-F
NRNDCornell Dubilier Knowles
CAP ALUM 4.7UF 20% 35V SMD
Description
General part information
AVS475M35B12T-F
4.7 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 42.4Ohm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AVS475M35B12T-F |
|---|---|
| Applications | Bypass, Decoupling, Automotive |
| Capacitance | 4.7 µF |
| ESR (Equivalent Series Resistance) | 42.4 Ohm |
| Height - Seated (Max) | 0.213 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 37.4 mA, 22 mA |
| Size / Dimension Diameter | 0.157 in |
| Surface Mount Land Length | 0.169 in |
| Surface Mount Land Width | 0.169 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
