Description
General part information

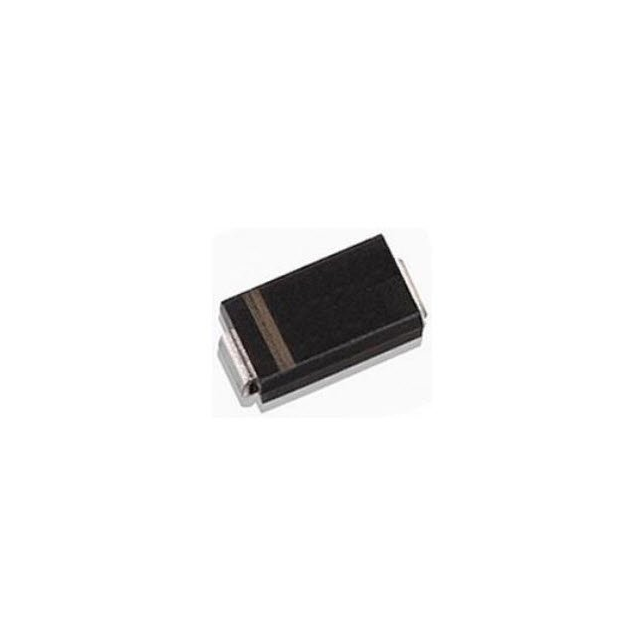

SMAJ64CA
103V Clamp 3.88A Ipp Tvs Diode Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SMAJ64CA |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 1 |
| Current - Peak Pulse | 3.88 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SMA, DO-214AC, DO-214AC (SMA) |
| Package Name | DO-214AC (SMA) |
| Power - Peak Pulse | 400 W |
| Type | Zener |
| Voltage - Breakdown (Min) | 71.1 V |
| Voltage - Clamping (Max) | 103 V |
| Voltage - Reverse Standoff (Typ) | 64 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
