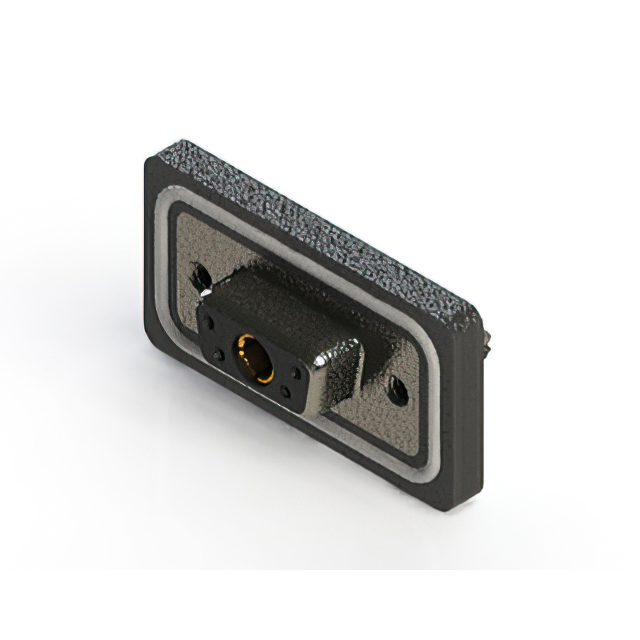

628W5W1-324-3N5

Active

EDAC Inc.

CONN D-SUB RCPT 5P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W5W1-324-3N5

Active

EDAC Inc.

CONN D-SUB RCPT 5P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W5W1-324-3N5

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	5
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E) - 5W1
Termination	Solder
Voltage Rating	125 VDC

628W5W Series

...

Part	Number of Positions	Flange Feature	Connector Style	Contact Type	Dielectric Material	Features	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Current Rating (Amps)	Color	Ingress Protection	Mounting Type	Material Flammability Rating	Contact Material	Connector Type	Contact Finish	Shell Size, Connector Layout	Number of Rows	Number of Positions [custom]	Termination	Shell Size, Connector Layout	Current Rating (Amps)
EDAC Inc. 628W5W1-622-4NA	5	Housing/Shell (M3)	Combo D-Sub	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.76 Ám	30 Áin	Nickel Plated Steel	5 A 40 A	Black	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	1 (DE E) - 5W1	2
EDAC Inc. 628W5W5-324-3NA		Housing/Shell (M3)	Combo D-Sub	Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.38 µm	15 µin	Nickel Plated Steel	30 A	Black	IP67 - Dust Tight Waterproof		UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	5W5	1	5	Solder	3
EDAC Inc. 628W5W1-324-1N2	5	Housing/Shell (4-40)	Combo D-Sub	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.38 µm	15 µin	Nickel Plated Steel		Black	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	1 (DE E) - 5W1	2		Solder		10A 5A
EDAC Inc. 628W5W5-624-2N2		Housing/Shell (4-40)	Combo D-Sub	Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.76 Ám	30 Áin	Nickel Plated Steel	20 A	Black	IP67 - Dust Tight Waterproof		UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	5W5	1	5	Solder	3
EDAC Inc. 628W5W5-622-3NA		Housing/Shell (M3)	Combo D-Sub	Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.76 Ám	30 Áin	Nickel Plated Steel	30 A	Black	IP67 - Dust Tight Waterproof		UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	5W5	1	5		3
EDAC Inc. 628W5W1-324-3N5	5	4-40 Board Side	Combo D-Sub	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Shielded	125 VDC	-25 °C	85 °C	0.38 µm	15 µin	Nickel Plated Steel	5 A 30 A	Black	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	1 (DE E) - 5W1	2		Solder
EDAC Inc. 628W5W1-324-2NA	5	Housing/Shell (M3)	Combo D-Sub	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.38 µm	15 µin	Nickel Plated Steel	5 A 20 A	Black	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	1 (DE E) - 5W1	2		Solder
EDAC Inc. 628W5W5-624-4ND		Board Side (M3)	Combo D-Sub	Power	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Shielded	125 VDC	-25 °C	85 °C	0.76 Ám	30 Áin	Nickel Plated Steel	40 A	Black	IP67 - Dust Tight Waterproof		UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	5W5	1	5	Solder	3
EDAC Inc. 628W5W5-622-2N2		Housing/Shell (4-40)	Combo D-Sub	Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.76 Ám	30 Áin	Nickel Plated Steel	20 A	Black	IP67 - Dust Tight Waterproof		UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	5W5	1	5		3
EDAC Inc. 628W5W5-624-4N2		Housing/Shell (4-40)	Combo D-Sub	Power	Polybutylene Terephthalate (PBT) Glass Filled	Shielded	125 VDC	-25 °C	85 °C	0.76 Ám	30 Áin	Nickel Plated Steel	40 A	Black	IP67 - Dust Tight Waterproof		UL94 V-0	Copper Alloy	Receptacle Female Sockets	Gold	5W5	1	5	Solder	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 11.27

Description

General part information

628W5W Series

5 (4 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
