WP934EB/2SURDK

Active

Kingbright

LED CBI 2.9MM BI-LVL RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP934EB/2SURDK

Active

Kingbright

LED CBI 2.9MM BI-LVL RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 0.80
		10	$ 0.51
		250	$ 0.37
		500	$ 0.36

Description

General part information

WP934 Series

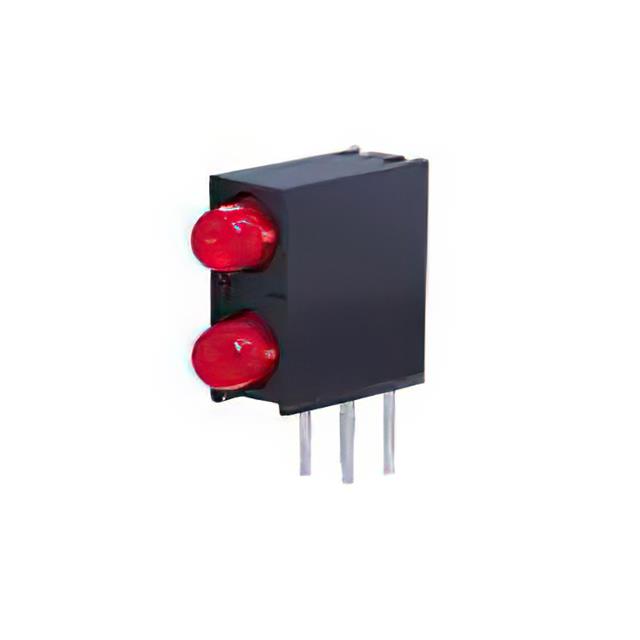

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red Diffused, Red 1.95V 20mA Round with Domed Top 2.90mm Dia Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WP934EB/2SURDK	WP934 Series

Color	Red	Yellow, Red, Red (x 4), Green (x 2), Green, Green (x 3), Green (x 4), Yellow (x 4), Yellow (x 2), Yellow (x 3), Blue, Red (x 1), Green (x 1)
Configuration	2 High	Single, 4 Wide, 2 High, 4 High, 3 High
Current	-	17.5 - 30 mA
Current	-	30 mA
Current	-	30 mA
Lens Size	-	3 mm
Lens Size	-	T-1
Lens Size [diameter]	2.9 mm	2.9 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Diffused, Red	Tinted, Diffused, Red, Clear
Millicandela Rating	900 mcd	0.6 - 900 mcd
Millicandela Rating	-	2 - 25 mcd
Millicandela Rating	-	0.6 - 14 mcd
Millicandela Rating	-	1.5 - 15 mcd
Millicandela Rating	-	15mcd Yellow, 25mcd Green
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Viewing Angle	50 °	30 - 50 °
Viewing Angle	-	40 °
Voltage Rating	1.95 V	1.7 - 5 V
Voltage Rating	-	6V Yellow, 6V Red, 6V Green
Wavelength - Peak	645 nm	466 - 660 nm
Wavelength - Peak	-	588 - 617 nm

WP934 Series

LED CBI 3MM YELLOW RA

Part	Mounting Type	Color	Lens Style	Voltage Rating	Lens Type	Configuration	Viewing Angle [custom]	Current	Lens Size	Lens Size	Wavelength - Peak	Millicandela Rating	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
Kingbright WP934EW/YD	Through Hole, Right Angle	Yellow	Round with Domed Top	2.1 V	Diffused, Tinted	Single	40 °	30 mA	3 mm	T-1	590 nm	15 mcd
Kingbright WP934RS/SRD	Through Hole, Right Angle	Red	Round with Domed Top	1.85 V	Diffused, Tinted	Single	40 °	30 mA	3 mm	T-1	655 nm	400 mcd
Kingbright WP934ZH/ID	Through Hole, Right Angle	Red	Round with Domed Top	2 V	Diffused, Tinted	Single	40 °	30 mA	3 mm	T-1	627 nm	30 mcd
Kingbright WP934TV/4LID	Through Hole, Right Angle	Red (x 4)	Round with Domed Top	1.7 V	Diffused, Tinted	4 Wide	40 °	30 mA				0.6 mcd	2.9 mm
Kingbright WP934GE/2GD	Through Hole, Right Angle	Green (x 2)	Round with Domed Top		Diffused, Tinted	2 High	40 °	25 mA	3 mm	T-1	565 nm	30 mcd
Kingbright WP934EW/GD5V	Through Hole, Right Angle	Green	Round with Domed Top	5 V	Diffused, Tinted	Single	40 °	17.5 mA			568 nm	25 mcd	2.9 mm
Kingbright WP934ZH/SRD	Through Hole, Right Angle	Red	Round with Domed Top	1.85 V	Diffused, Tinted	Single	40 °	30 mA	3 mm	T-1	660 nm	400 mcd
Kingbright WP934GE/2GD-RV	Through Hole, Right Angle	Green (x 2)	Round with Domed Top	2 V	Diffused, Tinted	2 High	40 °	25 mA	3 mm	T-1	568 nm	25 mcd
Kingbright WP934SB/4ID	Through Hole, Right Angle	Red (x 4)	Round with Domed Top	2 V	Diffused, Tinted	4 High	40 °	30 mA	3 mm	T-1	627 nm	20 mcd
Kingbright WP934SA/LILYLGD	Through Hole, Right Angle	Green, Red, Yellow	Round with Domed Top	1.7 V, 1.85 V, 1.9 V	Diffused, Tinted	3 High	40 °	25 mA, 30 mA, 30 mA			568 nm, 588 nm, 617 nm		2.9 mm	2 mcd	0.6 mcd	1.5 mcd
