1394007-1

Active

TE Connectivity AMP Connectors

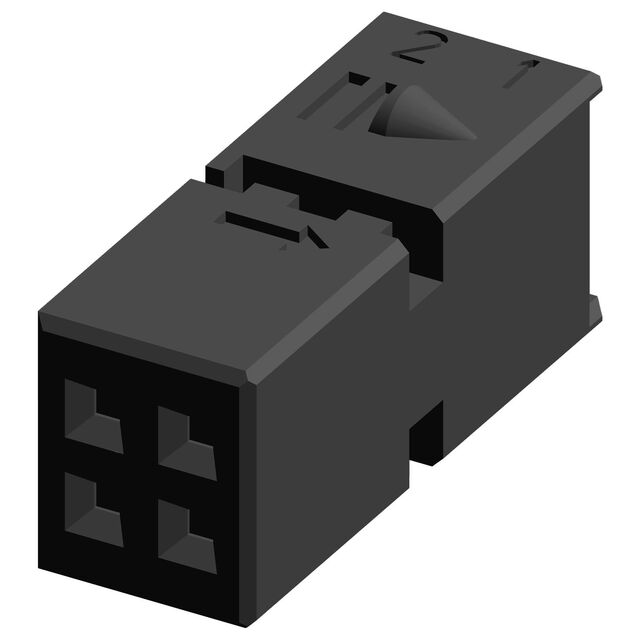

CONN RCPT HSG 4POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1394007-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

CONN RCPT HSG 4POS 2.54MM

Part	Pitch [x]	Pitch [x]	Note	Contact Type	Contact Termination	Connector Type	Row Spacing [x]	Row Spacing	Color	Insulation Material	Fastening Type	Number of Positions	Mounting Type	Number of Rows
TE Connectivity AMP Connectors 1394007-1	2.54 mm	0.1 in	Contacts Not Included	Female Socket	Crimp	Receptacle	0.1 in	2.54 mm	Black	Polybutylene Terephthalate (PBT), Glass Filled	Latch Lock	4	Free Hanging (In-Line)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

No documents available
