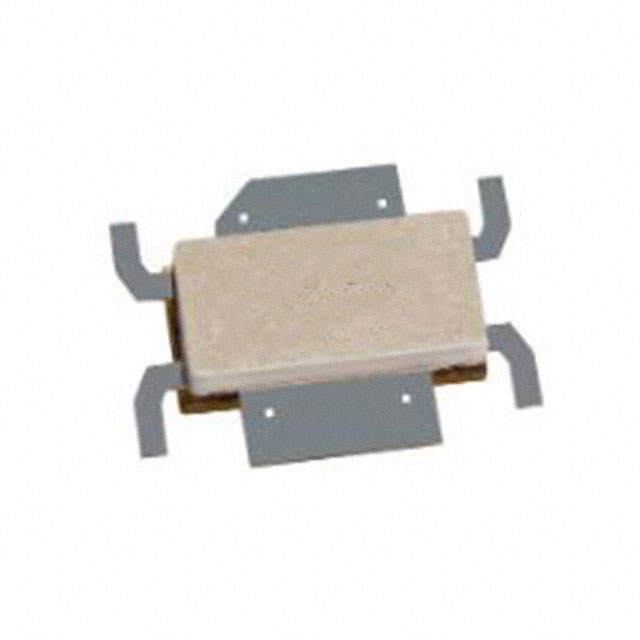

BLC9G20LS-120VTY

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1271-2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1271-2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BLC9G20LS-120VTY	BLC9 Series

	-	-
Configuration	-	2 N-Channel (Dual) Common Source, Common Source, Dual
Current - Test	700 mA	1.1 - 864 mA
Current Rating (Amps)	2.8 µA	1.4 - 2.8 µA
Frequency [Max]	1.995 GHz	1.88 - 1511 MHz
Frequency [Min]	1.805 GHz	1.805 - 1452 MHz
Gain	18.5 dBi	15.3 - 20 dB
Mounting Type	Surface Mount	Surface Mount, Chassis Mount
Package / Case	SOT-1271-2	SOT-1273-1, SOT-1275-3, SOT-1275-1, SOT-1278-1, SOT-1250-4, SOT1250-1, SOT-1258-7, SOT-1258-4, SOT-1258-3, SOT1275-1, SOT-1271-2, SOT-1250-2, SOT1275-3
Power - Output	172 W	28 - 600 W
Supplier Device Package	SOT1271-2	SOT1273-1, SOT-1275-3, DFM6, SOT1278-1, SOT1250-4, SOT1250-1, SOT-1258-7, SOT1258-4, SOT-1275-1, SOT1271-2, DFM4, SOT1275-3
Voltage - Rated	-	65 - 110 V
Voltage - Test	28 V	28 - 50 V

RF MOSFET LDMOS 48V SOT1273-1

Part	Current Rating (Amps)	Voltage - Rated	Voltage - Test	Mounting Type	Supplier Device Package	Package / Case	Configuration	Power - Output	Frequency [Max]	Frequency [Min]	Gain	Current - Test
Ampleon USA Inc. BLC9H10XS-505AYZ	1.4 µA	110 V	48 V	Surface Mount	SOT1273-1	SOT-1273-1	2 N-Channel (Dual) Common Source	500 W	960 MHz	617 MHz	18.2 dB
Ampleon USA Inc. BLC9G20LS-120VZ		65 V	28 V	Chassis Mount	SOT-1275-3	SOT-1275-3		120 W	1.88 GHz	1.81 GHz	19.2 dB	700 mA
Ampleon USA Inc. BLC9G20LS-160PV	1.4 µA	65 V	28 V	Chassis Mount	DFM6	SOT-1275-1	Common Source, Dual	160 W	2 GHz	1.805 GHz	19.8 dB	860 mA
Ampleon USA Inc. BLC9G22XS-120AGWTZ	1.4 µA	65 V	28 V	Surface Mount	SOT1278-1	SOT-1278-1	Common Source, Dual	120 W	2.2 GHz	2.11 GHz	17.1 dB	200 mA
Ampleon USA Inc. BLC9H10XS-606AY	1.4 µA	110 V	48 V	Surface Mount	SOT1250-4	SOT-1250-4	2 N-Channel (Dual) Common Source	600 W	960 MHz	616 MHz	18 dBi	1.8 A
Ampleon USA Inc. BLC9G22XS-120AGWTY	1.4 µA	65 V		Surface Mount	SOT1278-1	SOT-1278-1		120 W	2.2 GHz	2.11 GHz	17.1 dB
Ampleon USA Inc. BLC9H10XS-600AZ	1.4 µA	105 V	48 V	Surface Mount	SOT1250-1	SOT1250-1	Common Source, Dual	600 W	960 MHz	616 MHz	17.7 dB	600 mA
Ampleon USA Inc. BLC9G20XS-550AVTY	2.8 µA	65 V	28 V		SOT-1258-7	SOT-1258-7		580 W	1.88 GHz	1.805 GHz	15.4 dB	1.1 A
Ampleon USA Inc. BLC9G27XS-380AVTY	2.8 µA	65 V	30 V	Surface Mount	SOT-1258-7	SOT-1258-7		380 W	2.69 GHz	2.496 GHz	15.5 dBi	600 mA
Ampleon USA Inc. BLC9G22XS-400AVTZ		65 V	32 V	Surface Mount	SOT1258-4	SOT-1258-4		580 W	2.2 GHz	2.11 GHz	15.3 dB	810 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 700 mA 1.805GHz ~ 1.995GHz 18.5dB 172W SOT1271-2
