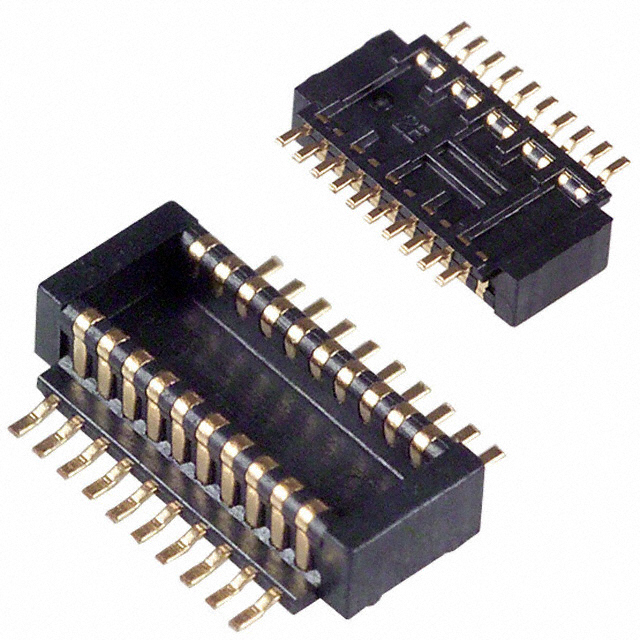

145602020000829+

Obsolete

KYOCERA AVX

CONN PLUG 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

KYOCERA AVX

CONN PLUG 20POS SMD GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN BOARD TO BOARD 70POS SMD

Part	Features	Connector Type	Mated Stacking Heights	Number of Rows	Number of Positions	Mounting Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
KYOCERA AVX 145602070000829H+	Board Guide	Outer Shroud Contacts, Plug	1.5 mm	2	70	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm
KYOCERA AVX 145602054000829H+	Board Guide	Outer Shroud Contacts, Plug	1.5 mm	2	54	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm
KYOCERA AVX 145602020000829+		Outer Shroud Contacts, Plug	1.5 mm, 1.7 mm, 2 mm, 2.8 mm	2	20	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm	Gold	4 Áin	0.1 Ám
KYOCERA AVX 145602030000829H+	Board Guide	Outer Shroud Contacts, Plug	1.5 mm	2	30	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm
KYOCERA AVX 145602050000829H+	Board Guide	Outer Shroud Contacts, Plug	1.5 mm	2	50	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm
KYOCERA AVX 145602020000829H+	Board Guide	Outer Shroud Contacts, Plug	1.5 mm	2	20	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm
KYOCERA AVX 145602080000829H+	Board Guide	Outer Shroud Contacts, Plug	1.5 mm	2	80	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm
KYOCERA AVX 145602070001829+
KYOCERA AVX 145602020000829		Outer Shroud Contacts, Plug	1.5 mm, 1.7 mm, 2 mm, 2.8 mm	2	20	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm	Gold	4 Áin	0.1 Ám
KYOCERA AVX 145602024000829H+	Board Guide	Outer Shroud Contacts, Plug	1.5 mm	2	24	Surface Mount	0.047 "	1.2 mm	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources
