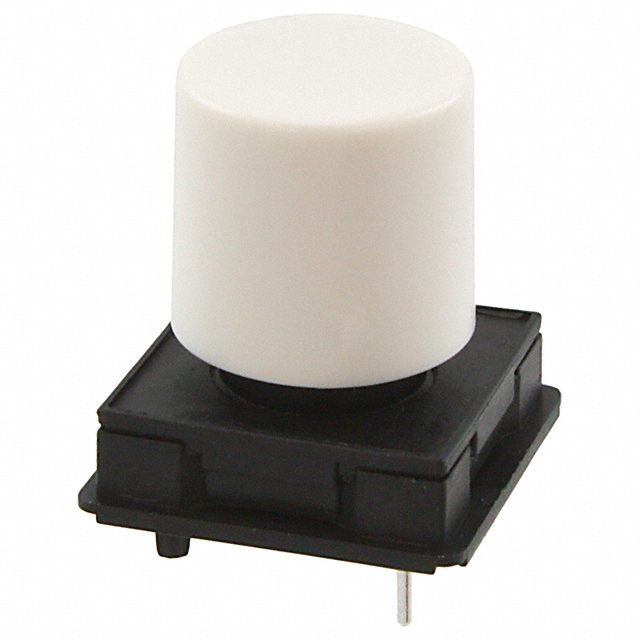

1241.1082.8
ActiveSCHURTER Inc.
NOT AVAILABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
1241.1082.8
ActiveSCHURTER Inc.
NOT AVAILABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.1082.8 | 1241.1082 Series |
|---|---|---|
| - | - | |
| Actuator Height off PCB, Vertical | - | 12.25 mm |
| Actuator Height off PCB, Vertical [z] | 13.75 mm | 9.25 - 13.75 mm |
| Actuator Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Round Button | Round Button |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.125 A, 48 VDC | 0.125 - 48 A |
| Features | Tactile Feedback | Tactile Feedback |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Through Hole | Through Hole |
| Operating Force | 0.25 kgf | 0.25 kgf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Outline [x] | 12.65 mm | 12.65 mm |
| Outline [y] | 12.65 mm | 12.65 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.45 mm | 0.45 mm |
| Termination Style | PC Pin | PC Pin |
1241.1082 Series
SWITCH TACTILE N.O. SPST ROUND BUTTON PC PINS 0.125A 48VDC >1000000CYCLES 2.5N THRU-HOLE BOX
| Part | Outline [y] | Outline [x] | Termination Style | Mounting Type | Circuit | Mechanical Life | Actuator Orientation | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force | Contact Rating @ Voltage | Ingress Protection | Features | Actuator Type | Switch Function | Actuator Material | Switch Travel | Actuator Height off PCB, Vertical [z] | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.1082.2 | 12.65 mm | 12.65 mm | PC Pin | Through Hole | SPST-NO | 1000000 Cycles | Top Actuated | Non-Illuminated | -25 °C | 85 °C | 0.25 kgf | 0.125 A, 48 VDC | IP40 | Tactile Feedback | Round Button | Off-Mom | Polycarbonate (PC) | 0.45 mm | 9.25 mm | |
SCHURTER Inc. 1241.1082.5 | 12.65 mm | 12.65 mm | PC Pin | Through Hole | SPST-NO | 1000000 Cycles | Top Actuated | Non-Illuminated | -25 °C | 85 °C | 0.25 kgf | 0.125 A, 48 VDC | IP40 | Tactile Feedback | Round Button | Off-Mom | Polycarbonate (PC) | 0.45 mm | 11.5 mm | |
SCHURTER Inc. 1241.1082.8 | 12.65 mm | 12.65 mm | PC Pin | Through Hole | SPST-NO | 1000000 Cycles | Top Actuated | Non-Illuminated | -25 °C | 85 °C | 0.25 kgf | 0.125 A, 48 VDC | IP40 | Tactile Feedback | Round Button | Off-Mom | Polycarbonate (PC) | 0.45 mm | 13.75 mm | |
SCHURTER Inc. 1241.1082.6 | 12.65 mm | 12.65 mm | PC Pin | Through Hole | SPST-NO | 1000000 Cycles | Top Actuated | Non-Illuminated | -25 °C | 85 °C | 0.25 kgf | 0.125 A, 48 VDC | IP40 | Tactile Feedback | Round Button | Off-Mom | Polycarbonate (PC) | 0.45 mm | 12.25 mm | |
SCHURTER Inc. 1241.1082.42 | ||||||||||||||||||||
SCHURTER Inc. 1241.1082.7 | 12.65 mm | 12.65 mm | PC Pin | Through Hole | SPST-NO | 1000000 Cycles | Top Actuated | Non-Illuminated | -25 °C | 85 °C | 0.25 kgf | 0.125 A, 48 VDC | IP40 | Tactile Feedback | Round Button | Off-Mom | Polycarbonate (PC) | 0.45 mm | 13 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1241.1082 Series
Tactile Switch SPST-NO Top Actuated Through Hole
