DRAP127-R47-R
ActiveEaton - Electronics Division
FIXED IND 470NH 15.9A 3MOHM SMD
DRAP127-R47-R
ActiveEaton - Electronics Division
FIXED IND 470NH 15.9A 3MOHM SMD
Description
General part information
DRAP127-R47-R

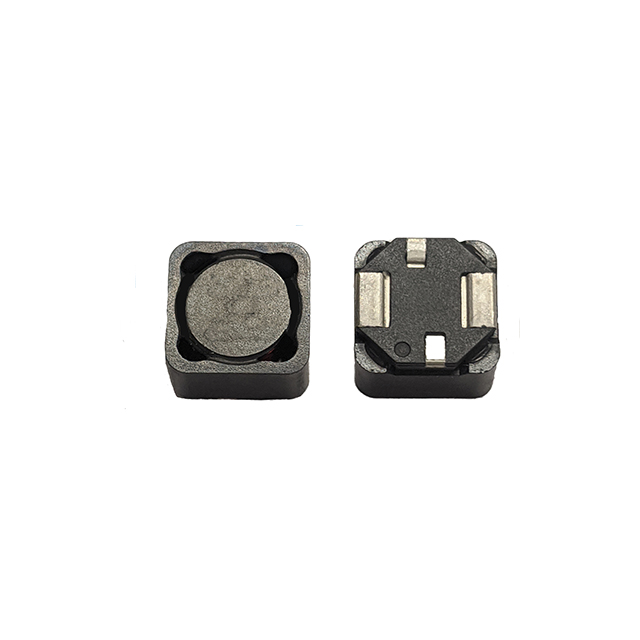

470 nH Shielded Inductor 15.9 A 3mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | DRAP127-R47-R |
|---|---|
| Current - Saturation (Isat) | 56 A |
| Current Rating | 15.9 A |
| DC Resistance (DCR) (Max) | 3 mOhm |
| Height - Seated (Max) | 0.319 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
