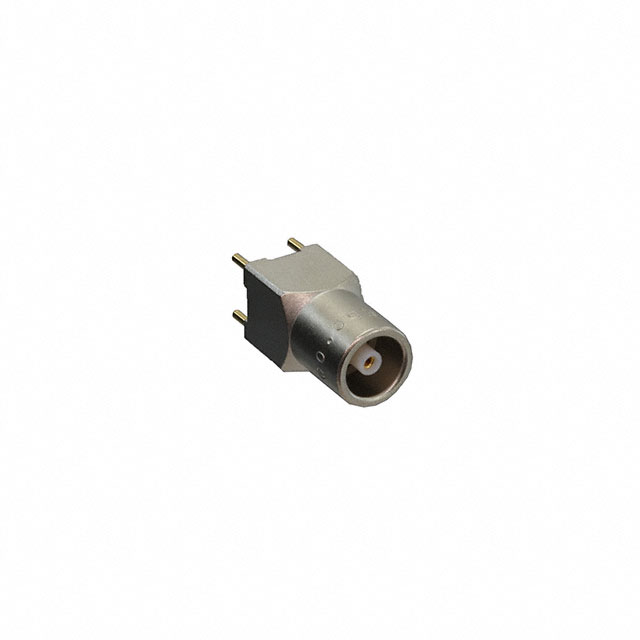

EPC.00.250.NTN

Active

LEMO

CONN NIMCAMAC RCPT STR 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EPC.00.250.NTN

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

CONN NIMCAMAC RCPT STR 50OHM PCB

Part	Impedance	Body Finish	Voltage Rating	Housing Color	Center Contact Plating	Contact Termination	Number of Ports	Dielectric Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Ingress Protection	Shield Termination	Mating Cycles	Connector Style	Fastening Type	Mounting Type	Connector Type
LEMO EPC.00.250.NTN	50 Ohms	Nickel	700 VDC	Silver	Gold	Solder	1	Polytetrafluoroethylene (PTFE)	Brass	-55 °C	260 ░C	Bronze	IP50	Solder	5000	NIM-CAMAC CD/N 549	Push-Pull	Through Hole	Female Socket, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Through Hole Solder
