200CNQ035
ActiveSMC Diode Solutions
DIODE MOD SCHOTT 35V 100A PRM4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
200CNQ035
ActiveSMC Diode Solutions
DIODE MOD SCHOTT 35V 100A PRM4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 200CNQ035 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 100 A |
| Current - Reverse Leakage @ Vr | 10 mA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | PRM4 |
| Speed | 200 mA, 500 ns |

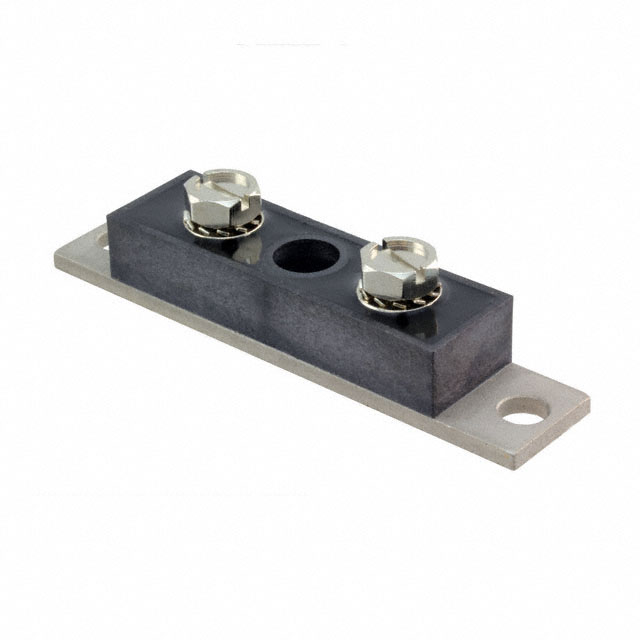

| Supplier Device Package | PRM4 (Non-Isolated) |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 35 V |
| Voltage - Forward (Vf) (Max) @ If | 570 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 198 | $ 49.91 | |
Description
General part information
200CNQ035
Diode Array 1 Pair Common Cathode 35 V 100A Chassis Mount PRM4
Documents
Technical documentation and resources
