X4045M8IZ

Active

Intersil

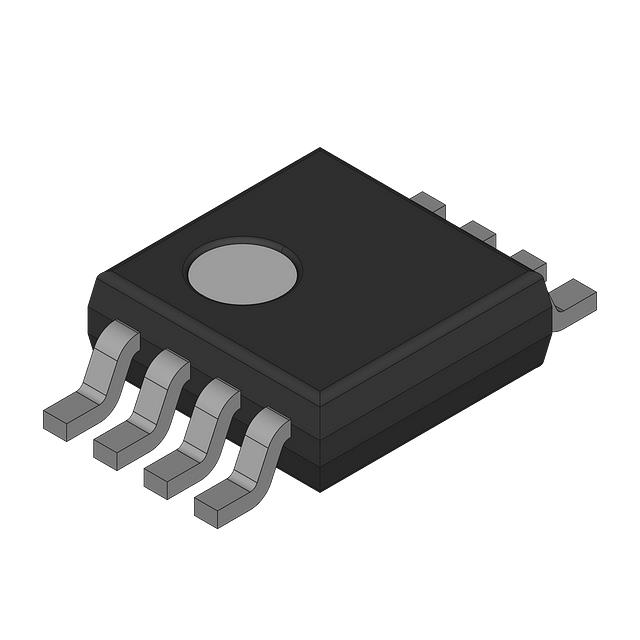

IC SUPERVISOR 1 CHANNEL 8MSOP

Search across all available documentation for this part.

Active

Intersil

IC SUPERVISOR 1 CHANNEL 8MSOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	68	$ 4.43

General part information

Supervisor Open Drain or Open Collector 1 Channel 8-MSOP

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	X4045M8IZ	X4045 Series

Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Voltages Monitored	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Open Drain or Open Collector	Open Drain or Open Collector
Package / Case	8-MSOP, 8-TSSOP	8-SOIC, 8-MSOP, 8-TSSOP, 8-DIP
Package / Case	3 mm	0.3 - 3 mm
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Package / Case	-	7.62 mm
Package / Case [custom]	0.118 in	0.118 in
Reset	Active High	Active High
Reset Timeout	100 ms	100 ms
Supplier Device Package	8-MSOP	8-SOIC, 8-MSOP, 8-PDIP
Type	Simple Reset/Power-On Reset	Simple Reset/Power-On Reset
Voltage - Threshold	-	4.62 V

IC SUPERVISOR 1 CHANNEL 8SOIC

Part	Number of Voltages Monitored	Type	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Threshold	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output	Reset	Reset Timeout	Package / Case [custom]	Package / Case	Package / Case
Intersil X4045S8I-4.5A	1	Simple Reset/Power-On Reset	8-SOIC	3.9 mm	0.154 in	4.62 V	Surface Mount	8-SOIC	85 °C	-40 °C	Open Drain or Open Collector	Active High	100 ms
Intersil X4045M8IZ	1	Simple Reset/Power-On Reset	8-MSOP, 8-TSSOP				Surface Mount	8-MSOP	85 °C	-40 °C	Open Drain or Open Collector	Active High	100 ms	0.118 in	3 mm
Intersil X4045PIZ	1	Simple Reset/Power-On Reset	8-DIP				Through Hole	8-PDIP	85 °C	-40 °C	Open Drain or Open Collector	Active High	100 ms		0.3 in	7.62 mm
