2908497

Active

Phoenix Contact

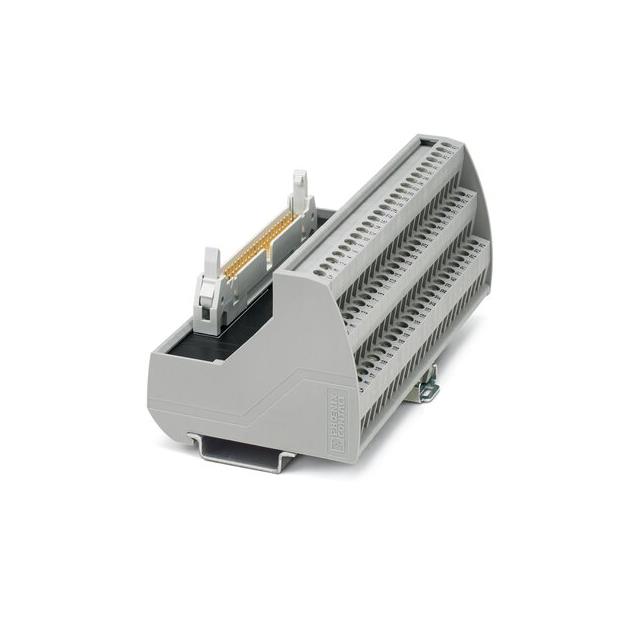

TERMINAL BLOCK INTERFACE MODULES VIP-3/SC/FLK50/AN/2P S7-1500

Search across all available documentation for this part.

Active

Phoenix Contact

TERMINAL BLOCK INTERFACE MODULES VIP-3/SC/FLK50/AN/2P S7-1500

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2908497	VIP-3 Series

Control Side Cable Retainer	Latches	Jackscrew Socket, Latches
Control Side Connection	-	D-Sub, Female, D-Sub, Male
Control Side Connection [custom]	Male	Male
Control Side Connection [custom]	Rectangular	Rectangular
Current Rating (Per Contact)	1 A	1 - 2.5 A
Features	-	LED
Length	5.047 in	2.059 - 5.047 in
Length	128.2 mm	52.3 - 128.2 mm
Operating Temperature [Max]	60 °C	50 - 60 °C
Operating Temperature [Min]	-20 C	-20 C
Positions / Poles	50	14 - 50
Process Side Connection	Terminal Blocks - Screw Connection	Terminal Blocks - Screw Connection
Voltage - Rated	60 VAC/DC	24 - 125 V
Width	-	65.5 - 69.01 mm
Width	-	2.579 in
Width	-	2.717 in
Width [x]	68.8 mm	68.8 mm
Width [x]	2.709 in	2.709 in
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Terminal Block Interface Modules VIP3/FLK14/8/LED/PLC

Part	Wire Gauge [Min]	Wire Gauge [Max]	Voltage - Rated	Current Rating (Per Contact)	Positions / Poles	Operating Temperature [Max]	Operating Temperature [Min]	Control Side Cable Retainer	Process Side Connection	Control Side Connection	Width	Width [y]	Width [x]	Width [x]	Control Side Connection [custom]	Control Side Connection [custom]	Length	Length	Features	Width
Phoenix Contact 2322401	12 AWG	24 AWG	125 V	1 A	15	50 °C	-20 C	Jackscrew Socket	Terminal Blocks - Screw Connection	D-Sub, Female	65.5 mm	2.579 in
Phoenix Contact 2908497	12 AWG	24 AWG	60 VAC/DC	1 A	50	60 °C	-20 C	Latches	Terminal Blocks - Screw Connection				68.8 mm	2.709 in	Male	Rectangular	5.047 in	128.2 mm
Phoenix Contact 2322171	12 AWG	24 AWG	24 VDC	2.5 A	37	50 °C	-20 C	Jackscrew Socket	Terminal Blocks - Screw Connection	D-Sub, Male	69.01 mm						2.862 in	72.69 mm	LED	2.717 in
Phoenix Contact 2322265	12 AWG	24 AWG		1 A	14	50 °C	-20 C	Latches	Terminal Blocks - Screw Connection		69.01 mm				Male	Rectangular	2.059 in	52.3 mm		2.717 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 111.63
Sager	N/A	1	$ 115.10
		10	$ 102.77
