0001.2712.11
ActiveSCHURTER Inc.

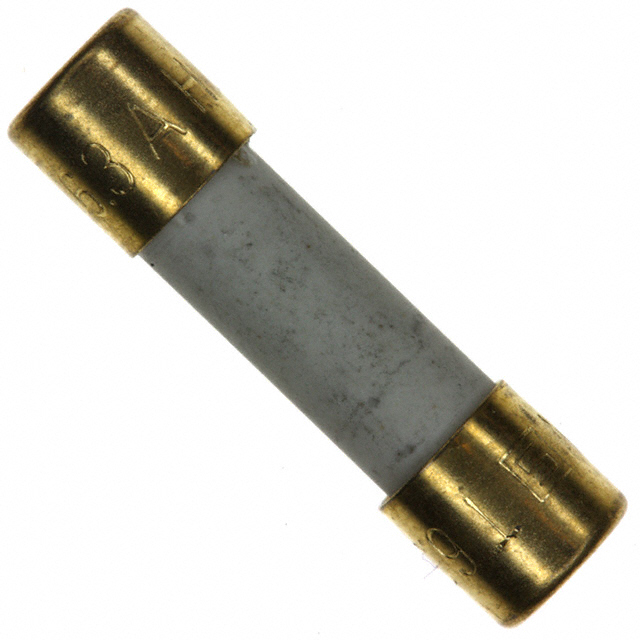

FUSE CERM 6.3A 250VAC 150VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0001.2712.11
ActiveSCHURTER Inc.
FUSE CERM 6.3A 250VAC 150VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0001.2712.11 | 0001.2712 Series |
|---|---|---|
| Approval Agency | VDE, CCC, cURus | ENEC, CCC, cURus, VDE |
| Breaking Capacity @ Rated Voltage | 1.5 kA | 1.5 kA |
| Current Rating (Amps) | 6.3 A | 6.3 A |
| Fuse Type | Cartridge, Ceramic | Cartridge, Ceramic |
| Melting I˛t | - | 171 |
| Melting I²t | 171 | 171 |
| Mounting Type | Requires Holder | Requires Holder |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case [x] | 5 mm | 5 mm |
| Package / Case [y] | 20 mm | 20 mm |
| Response Time | Slow Blow | Slow Blow |
| Size / Dimension [diameter] | 5.2 mm | 5.2 mm |
| Size / Dimension [diameter] | 0.205 in | 0.205 in |
| Size / Dimension [x] | 0.787 in | 0.787 in |
| Size / Dimension [x] | 20 mm | 20 mm |
| Voltage Rating - AC | 250 V | 250 V |
| Voltage Rating - DC | 150 V | 150 V |
0001.2712 Series
"SMD-SPT 5X20, 6.3 A, 250 VAC, 150 VDC, TIME-LAG T, BLISTER TAPE 1.000 PCS., FUSE, , SMT, 5X20 MM\/
| Part | Melting I˛t | Approval Agency | Breaking Capacity @ Rated Voltage | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Fuse Type | Voltage Rating - DC | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - AC | Package / Case [y] | Package / Case [x] | Mounting Type | Current Rating (Amps) | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 0001.2712.22 | 171 | CCC, cURus, ENEC | 1.5 kA | Slow Blow | -55 °C | 125 °C | Cartridge, Ceramic | 150 V | 0.787 in | 5.2 mm | 20 mm | 0.205 in | 250 V | 20 mm | 5 mm | Requires Holder | 6.3 A | |
SCHURTER Inc. 0001.2712.11 | CCC, cURus, VDE | 1.5 kA | Slow Blow | -55 °C | 125 °C | Cartridge, Ceramic | 150 V | 0.787 in | 5.2 mm | 20 mm | 0.205 in | 250 V | 20 mm | 5 mm | Requires Holder | 6.3 A | 171 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 50 | $ 1.18 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.83 | |||
Description
General part information
0001.2712 Series
"SMD-SPT 5X20, 6.3 A, 250 VAC, 150 VDC, TIME-LAG T, BLISTER TAPE 1.000 PCS., FUSE, , SMT, 5X20 MM\/
