Description
General part information
BCA-S-48-BG

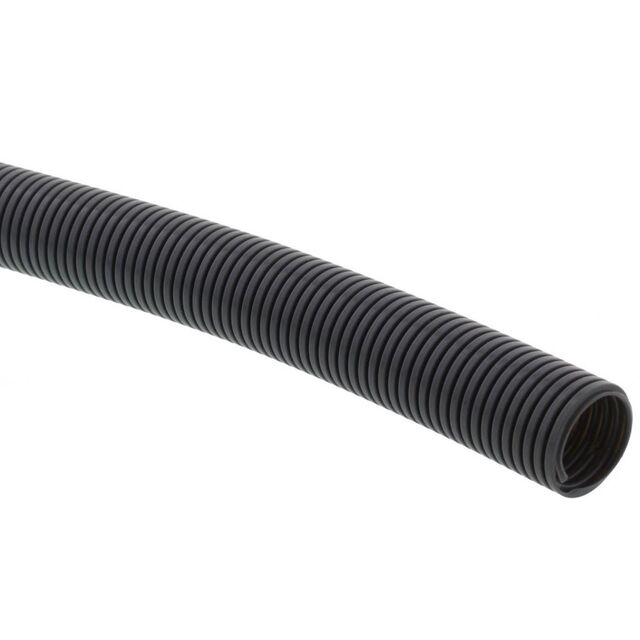

Black Polyamide (PA6), Nylon 6 Convoluted, Corrugated Wire Loom, Protective Hose 1.878" (47.70mm) 82.02' (25.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BCA-S-48-BG |
|---|---|
| Color | Black |
| Diameter - Inside | 1.878 in |
| Diameter - Outside | 2.146 in |
| Length | 82.02 ft |
| Material | Polyamide (PA6), Nylon 6 |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature (Max) | 140 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
| Wall Thickness | 0.016 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
