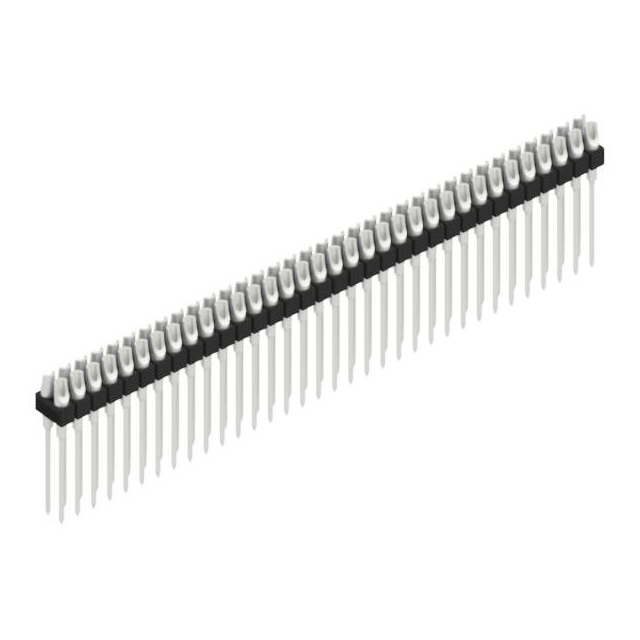

MK 210 68 Z
ActiveFischer Elektronik
WIRE WRAP PIN, SQUARE 0,635 MM
MK 210 68 Z
ActiveFischer Elektronik
WIRE WRAP PIN, SQUARE 0,635 MM
Description
General part information
MK 210 68 Z
Connector Header Through Hole 68 position 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MK 210 68 Z |
|---|---|
| Color | Black |
| Connector Type | Header |
| Contact Finish | Tin |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness | 157.5 µin |
| Contact Material | Copper Zinc |
| Contact Type | Solder Cup |
| Mounting Type | Through Hole |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Pitch - Mating | 0.1 in |
| Row Spacing | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
