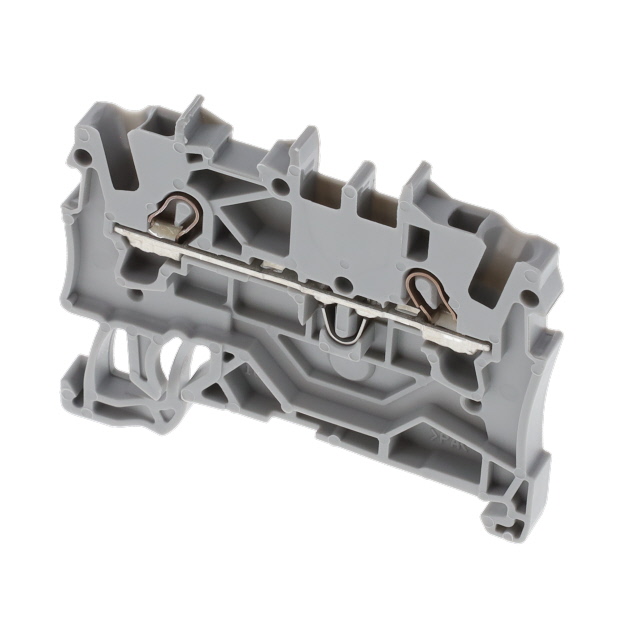

2001-1201

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A

Technical Specifications

Parameters and characteristics commom to parts in this series

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A

Part	Color	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material - Insulation	Number of Positions	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width [y]	Number of Levels	Current - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - IEC	Voltage - UL
WAGO Corporation 2001-1207	Green, Yellow	Push In, Spring	0.75 mm²	2.5 mm²	Ground, Earth	18 AWG	14 AWG	Polyamide (PA66), Nylon 6/6	2	9 mm	11 mm	4.2 mm	1
WAGO Corporation 2001-1201	Gray	Push In, Spring			Feed Through	18 AWG	14 AWG	Polyamide (PA66), Nylon 6/6	2	9 mm	11 mm	4.2 mm	1	24 A	0.75 mm˛	2.5 mm˛	800 V	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Gray 14-18 AWG
