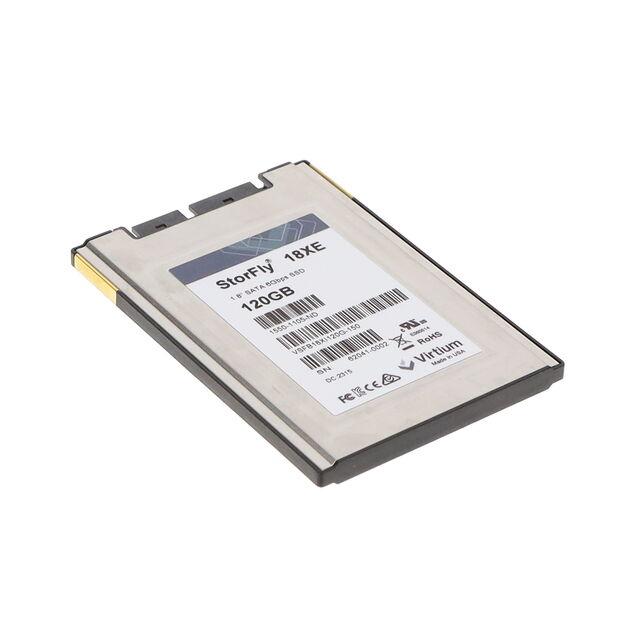

VSFB18XI120G-150

Active

Virtium LLC

SSD 120GB 1.8" MLC SATA III 3.3V

Search across all available documentation for this part.

Active

Virtium LLC

SSD 120GB 1.8" MLC SATA III 3.3V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VSFB18XI120G-150	VSFB18 Series

Form Factor	1.8 in	1.8 in
Memory Size	120 GB	32 - 256 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)	Solid State Drive (SSD) FLASH - NAND (SLC), Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Size / Dimension [x]	78.25 mm	78.25 mm
Size / Dimension [y]	54 mm	54 mm
Size / Dimension [z]	5 mm	5 mm
Speed - Read	-	370 MB/s
Speed - Write	-	280 MB/s
Type	SATA III	SATA III
Voltage - Supply	3.3 V	3.3 V

SSD 32GB 1.8" SLC SATA III

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Form Factor	Memory Type	Speed - Write	Speed - Read	Memory Size	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply
Virtium LLC VSFB18PC032G-100	54 mm	78.25 mm	5 mm	1.8 in	Solid State Drive (SSD) FLASH - NAND (SLC)	280 MB/s	370 MB/s	32 GB	SATA III	70 °C	0 °C
Virtium LLC VSFB18PC256G-100	54 mm	78.25 mm	5 mm	1.8 in	Solid State Drive (SSD) FLASH - NAND (SLC)	280 MB/s	370 MB/s	256 GB	SATA III	70 °C	0 °C
Virtium LLC VSFB18XI120G-150	54 mm	78.25 mm	5 mm	1.8 in	Solid State Drive (SSD) FLASH - NAND (MLC)			120 GB	SATA III	85 °C	-40 °C	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State Drive (SSD) FLASH - NAND (MLC) 120GB SATA III 1.8" 3.3V
