FMCN1560

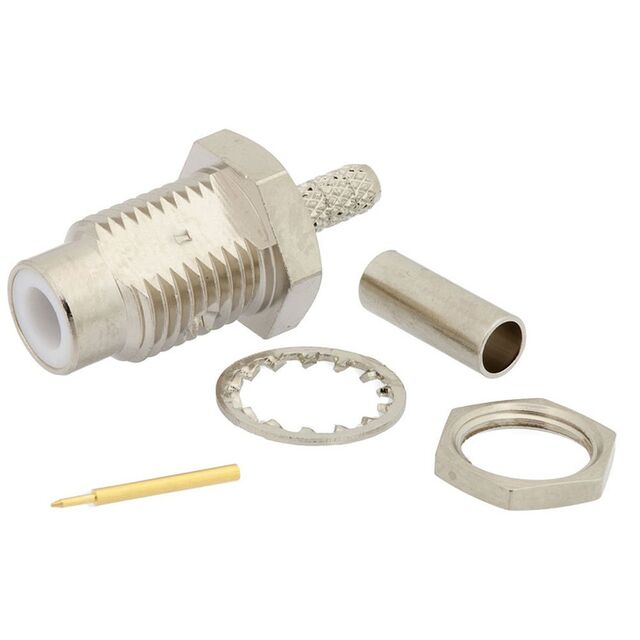

SMC Connector Jack, Female Socket 75 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1560 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 187, RG-179 |
| Center Contact Plating | Gold |
| Connector Style | SMC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 2 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
