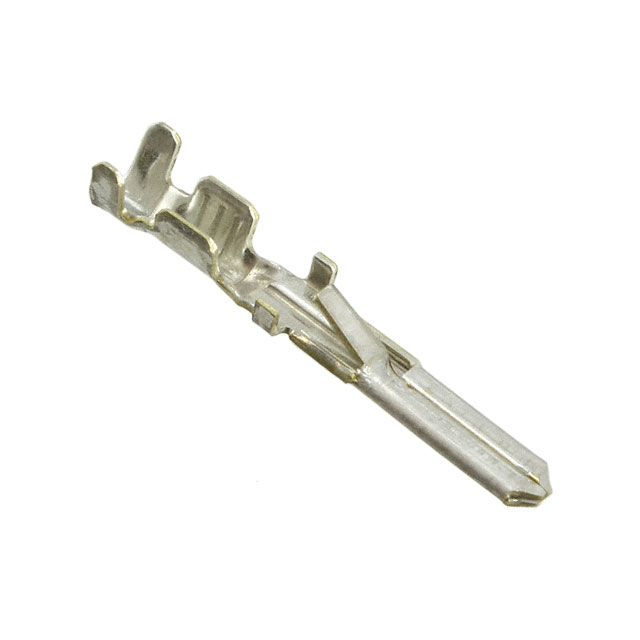

927892-1

Active

TE Connectivity AMP Connectors

CONN QC TAB 17-20AWG 0.110 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC TAB 17-20AWG 0.110 CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.110" (2.79mm) Quick Connect Male 17-20 AWG Crimp Connector Non-Insulated

Technical documentation and resources

Specification	927892-1	927892 Series

Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Gender	Male	Male
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	2.21 mm, 0.087 "	0.087 - 2.21 mm
Insulation Diameter [Min] [diameter]	0.063 ", 1.6 mm	0.063 - 1.6 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	2.79 mm	2.79 mm
Tab Width	0.11 "	0.11 "
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	17 AWG	17 AWG

Part	Tab Width	Tab Width	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Contact Finish	Termination	Tab Thickness	Tab Thickness	Gender	Mounting Type	Insulation	Contact Material
TE Connectivity AMP Connectors 927892-1	2.79 mm	0.11 "	0.087 ", 2.21 mm	0.063 ", 1.6 mm	17 AWG	20 AWG	Standard	Tin	Crimp	0.032 in	0.81 mm	Male	Free Hanging (In-Line)	Non-Insulated	Copper
TE Connectivity AMP Connectors 927892-2	2.79 mm	0.11 "	0.087 ", 2.21 mm	0.063 ", 1.6 mm	17 AWG	20 AWG	Standard	Tin	Crimp	0.032 in	0.81 mm	Male	Free Hanging (In-Line)	Non-Insulated	Copper
