45104C
ActiveMurata Power Solutions Inc.

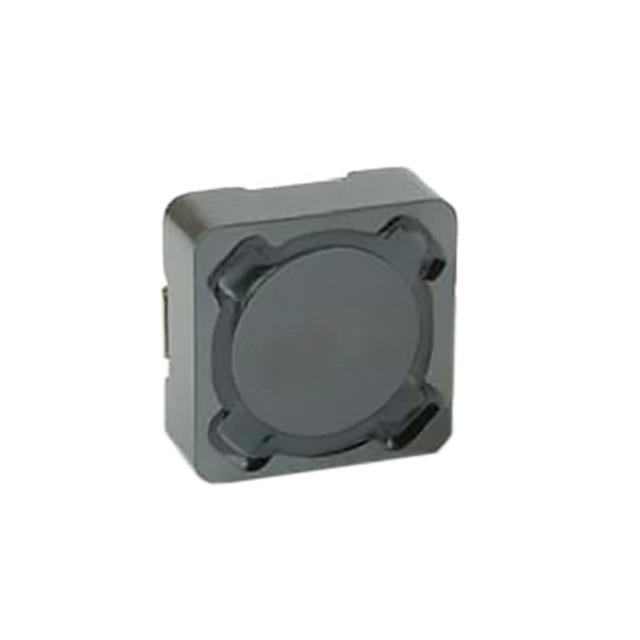

SURFACE MOUNT POWER INDUCTOR, 4500 SERIES, 100 H, 20%, SHIELDED, 0.71 OHM, 700 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
45104C
ActiveMurata Power Solutions Inc.
SURFACE MOUNT POWER INDUCTOR, 4500 SERIES, 100 H, 20%, SHIELDED, 0.71 OHM, 700 MA ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 45104C | 45 Series |
|---|---|---|
| - | - | |
| Current Rating (Amps) | 700 mA | 0.23 - 820 mA |
| DC Resistance (DCR) | - | 5 - 180 mOhm |
| DC Resistance (DCR) [Max] | 710 mOhm | 1 - 710 mOhm |
| Height - Seated (Max) [Max] [z] | 3.55 mm | 3.55 mm |
| Height - Seated (Max) [Max] [z] | 0.14 in | 0.14 in |
| Inductance | 100 µH | 1 - 680 µH |
| Inductance Frequency - Test | 10 kHz | 10 kHz |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Nonstandard | Nonstandard |
| Shielding | Shielded | Shielded |
| Size / Dimension [x] | 7.3 mm | 7.3 mm |
| Size / Dimension [x] | 0.287 in | 0.287 in |
| Size / Dimension [y] | 7.3 mm | 7.3 mm |
| Size / Dimension [y] | 0.287 in | 0.287 in |
| Tolerance | 20 % | 20 - 30 % |
| Type | Wirewound | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| Digi-Reel® | 1 | $ 0.47 | ||
| Tape & Reel (TR) | 1000 | $ 0.47 | ||
45 Series
FIXED IND 150UH 580MA 1 OHM SMD
| Part | Tolerance | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | DC Resistance (DCR) [Max] | Mounting Type | Current Rating (Amps) | Package / Case | Shielding | Inductance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 45154C | ||||||||||||||||||
Murata Power Solutions Inc. 45104C | 20 % | 10 kHz | 3.55 mm | 0.14 in | Wirewound | 710 mOhm | Surface Mount | 700 mA | Nonstandard | Shielded | 100 µH | 7.3 mm | 0.287 in | 7.3 mm | 0.287 in | 125 °C | -40 °C | |
Murata Power Solutions Inc. 45153C | 20 % | 10 kHz | 3.55 mm | 0.14 in | Wirewound | Surface Mount | 1.8 A | Nonstandard | Shielded | 15 µH | 7.3 mm | 0.287 in | 7.3 mm | 0.287 in | 125 °C | -40 °C | 120 mOhm | |
Murata Power Solutions Inc. 45472C | ||||||||||||||||||
Murata Power Solutions Inc. 45222C | ||||||||||||||||||
Murata Power Solutions Inc. 45682C | ||||||||||||||||||
Murata Power Solutions Inc. 45684C | 20 % | 10 kHz | 3.55 mm | 0.14 in | Wirewound | Surface Mount | 0.26 A | Nonstandard | Shielded | 680 µH | 7.3 mm | 0.287 in | 7.3 mm | 0.287 in | 125 °C | -40 °C | 5 Ohm | |
Murata Power Solutions Inc. 45103C | ||||||||||||||||||
Murata Power Solutions Inc. 45105C | 20 % | 10 kHz | 3.55 mm | 0.14 in | Wirewound | Surface Mount | 0.23 A | Nonstandard | Shielded | 1 mH | 7.3 mm | 0.287 in | 7.3 mm | 0.287 in | 125 °C | -40 °C | 6.5 Ohm | |
Murata Power Solutions Inc. 45473C |
Description
General part information
45 Series
100 µH Shielded Wirewound Inductor 700 mA 710mOhm Max Nonstandard
