RJ1S-CLD-D24
ActiveIDEC Corporation
POWER RELAY, SPDT, 24 VDC, 12 A, RJ SERIES, SOCKET, NON LATCHING
Deep-Dive with AI
Search across all available documentation for this part.
RJ1S-CLD-D24
ActiveIDEC Corporation
POWER RELAY, SPDT, 24 VDC, 12 A, RJ SERIES, SOCKET, NON LATCHING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RJ1S-CLD-D24 | RJ1S-C Series |
|---|---|---|
| Approval Agency | CE, VDE, cURus, CSA | CE, VDE, cURus, CSA |
| Coil Current | 25.7 mA | 4.1 - 110 mA |
| Coil Resistance | 1.08 kOhms | 1.08 - 271 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 5 - 220 VDC |
| Coil Voltage | - | 110 VDC |
| Coil Voltage | - | 100 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A | 12 - 16 A |
| Features | Lighted Indicator, Diode | Diode, RC Circuit, Lighted Indicator, Reverse Coil Polarity |
| Mounting Type | Socketable | Socketable |
| Must Operate Voltage | 16.8 VDC | 3.5 - 176 VDC |
| Must Release Voltage | 2.4 VDC | 0.5 - 66 VDC |
| Operate Time | 20 ms | 15 - 20 ms |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 20 ms | 10 - 20 ms |
| Switching Voltage | 250 VAC | 30 - 250 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) |
RJ1S-C Series
GP RELAY SPDT 5VDC COIL
| Part | Must Operate Voltage | Contact Form | Contact Material | Coil Voltage | Relay Type | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Switching Voltage | Coil Resistance | Operate Time | Termination Style | Contact Rating (Current) | Mounting Type | Coil Type | Release Time | Must Release Voltage | Features | Coil Voltage [Max] | Coil Voltage [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation RJ1S-C-D5 | 3.5 VDC | SPDT (1 Form C) | Silver Nickel (AgNi) | 5 VDC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 106 mA | 125 VDC, 250 VAC | 47.2 Ohms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 0.5 VDC | |||
IDEC Corporation RJ1S-CD-D5 | 3.5 VDC | SPDT (1 Form C) | Silver Nickel (AgNi) | 5 VDC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 106 mA | 125 VDC, 250 VAC | 47.2 Ohms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 0.5 VDC | Diode | ||
IDEC Corporation RJ1S-CD-D24 | 16.8 VDC | SPDT (1 Form C) | Silver Nickel (AgNi) | 24 VDC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 22.1 mA | 250 VAC | 1.08 kOhms | 20 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 20 ms | 2.4 VDC | Diode | ||
IDEC Corporation RJ1S-CR-A12 | 9.6 VAC/DC | SPDT (1 Form C) | Silver Nickel (AgNi) | 12 VAC/DC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 75 mA | 125 VDC, 250 VAC | 62.5 Ohms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 3.6 VAC | RC Circuit | ||
IDEC Corporation RJ1S-CL-A24 | 19.2 VAC | SPDT (1 Form C) | Silver Nickel (AgNi) | 24 VAC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 41.1 mA | 250 VAC | 243 Ohms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 7.2 VAC | Lighted Indicator | ||
IDEC Corporation RJ1S-C-A220 | 176 VAC | SPDT (1 Form C) | Silver Nickel (AgNi) | 220 VAC/DC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 4.1 mA | 125 VDC, 250 VAC | 21.53 kOhms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 66 VAC | |||
IDEC Corporation RJ1S-CR-A120 | 96 VAC | SPDT (1 Form C) | Silver Nickel (AgNi) | 120 VAC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 7.5 mA | 125 VDC, 250 VAC | 6.4 kOhms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 36 VAC | RC Circuit | ||
IDEC Corporation RJ1S-CL-D24 | 16.8 VDC | SPDT (1 Form C) | Silver Nickel (AgNi) | 24 VDC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 25.7 mA | 250 VAC | 1.08 kOhms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 2.4 VDC | Lighted Indicator | ||
IDEC Corporation RJ1S-CLD-D5 | 3.5 VDC | SPDT (1 Form C) | Silver Nickel (AgNi) | 5 VDC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 110 mA | 125 VDC, 250 VAC | 47.2 Ohms | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 0.5 VDC | Diode, Lighted Indicator | ||
IDEC Corporation RJ1S-CL-A110 | 88 VAC/DC | SPDT (1 Form C) | Silver Nickel (AgNi) | 110 VAC/DC | General Purpose | CE, CSA, cURus, VDE | -40 °C | 70 °C | 8.1 mA | 125 VDC, 250 VAC | 15 ms | Plug In, Quick Connect - 0.187" (4.7mm) | 12 A | Socketable | Non Latching | 10 ms | 33 VAC | Lighted Indicator |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RJ1S-C Series

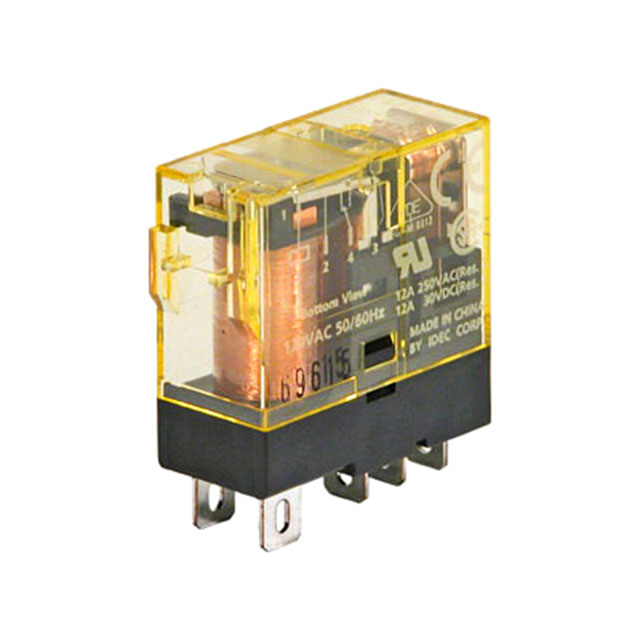

The RJ1S-CLD-D24 is a 1-pole Slim Power Relay with DC coil, RJ series. SPDT contact configuration. Blade terminal with LED indicator and surge suppression diode. Compact and rugged power relays with large switching capacity. Non-polarized LED indicator available on blade type. IDEC's unique light guide structure enables high visibility of coil status from any direction.
