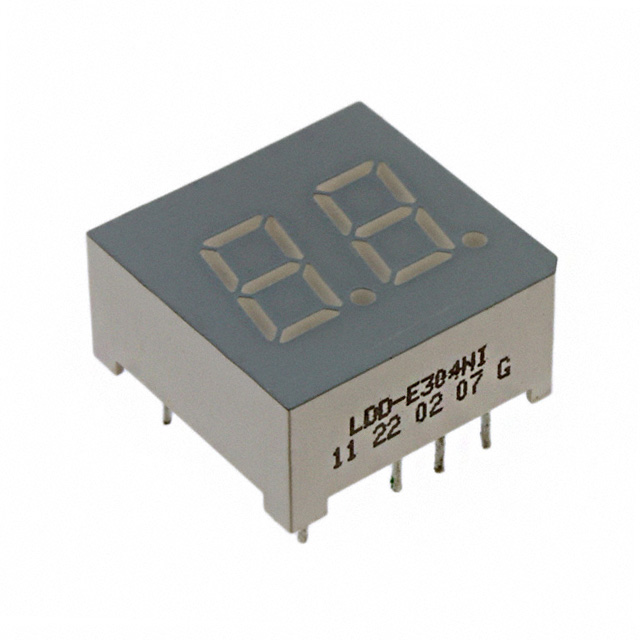

LDD-E304NI

Active

Lumex Opto/Components Inc.

DISPLAY 7-SEG 0.3" DBL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDD-E304NI

Active

Lumex Opto/Components Inc.

DISPLAY 7-SEG 0.3" DBL RED 10DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LDD-E304NI	LDD-E304 Series

Color	Red	Red
Common Pin	Common Anode	Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	0.3 in	0.3 in
Digit/Alpha Size	7.62 mm	7.62 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	2 mcd	2 mcd
Number of Characters	2	2
Package / Case	10.16 mm	10.16 mm
Package / Case	10-DIP	9-SIP Right Angle, 10-DIP
Package / Case	9, 10.16 mm	9 - 10.16
Power Dissipation (Max) [Max]	105 mW	105 mW
Size / Dimension [x]	7.2 mm	7.2 mm
Size / Dimension [x]	0.283 in	0.283 in
Size / Dimension [y]	15.5 mm	15.5 mm
Size / Dimension [y]	0.61 in	0.61 in
Size / Dimension [z]	15 mm	15 mm
Size / Dimension [z]	0.591 "	0.591 "
Voltage - Forward (Vf) (Typ)	2 V	2 V
Wavelength - Peak	635 nm	635 nm

LDD-E304 Series

DISP 7SEG 0.3" DBL RED 9SIP RA

Part	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Package / Case	Wavelength - Peak	Power Dissipation (Max) [Max]	Display Type	Number of Characters	Millicandela Rating	Color	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case
Lumex Opto/Components Inc. LDD-E304NI-RA	Common Anode	0.3 in	7.62 mm	10 mA	9-SIP Right Angle	635 nm	105 mW	7-Segment	2	2 mcd	Red	2 V	15.5 mm	7.2 mm	15 mm	0.591 "	0.283 in	0.61 in
Lumex Opto/Components Inc. LDD-E304NI	Common Anode	0.3 in	7.62 mm	10 mA	10-DIP	635 nm	105 mW	7-Segment	2	2 mcd	Red	2 V	15.5 mm	7.2 mm	15 mm	0.591 "	0.283 in	0.61 in	10.16 mm	9, 10.16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.71
		32	$ 1.81
		128	$ 1.39
		512	$ 1.26
		1024	$ 1.08
		2016	$ 1.02
		5024	$ 1.00
		10016	$ 0.98

Description

General part information

LDD-E304 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 10-DIP (0.400", 10.16mm), 9 Leads
