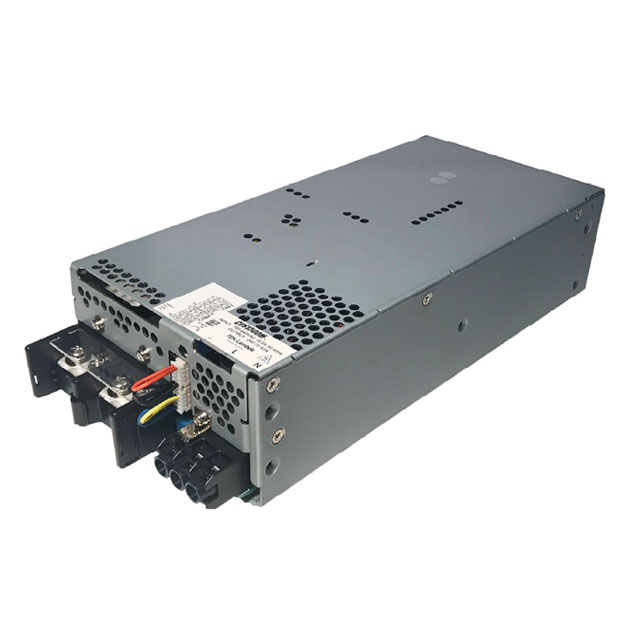

CUS1500M-15

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), MEDICAL, 1 OUTPUTS, 1.5 KW, 15 V, 100 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), MEDICAL, 1 OUTPUTS, 1.5 KW, 15 V, 100 A

Technical Specifications

Parameters and characteristics for this part

Specification	CUS1500M-15

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	100 A
Efficiency	85 %
Features	Remote Sense, Adjustable Output, Remote On/Off, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1500 W
Size / Dimension [x]	10.28 "
Size / Dimension [x]	261 mm
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	2.48 "
Size / Dimension [z]	63 mm
Type	Enclosed
Voltage - Input [Max]	340 VDC, 265 VAC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 15V 85 ~ 265 VAC, 120 ~ 340 VDC Input
