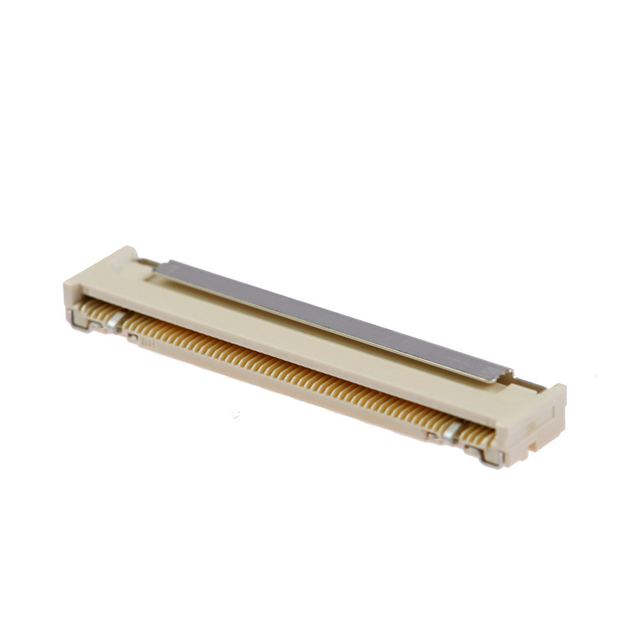

IMSA-11501S-60A-GFN1

Active

IRISO USA Inc.

CONN FFC BOTTOM 60POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

Documents11501 Series Prod Spec Datasheet

IMSA-11501S-60A-GFN1

Active

IRISO USA Inc.

CONN FFC BOTTOM 60POS 0.5MM R/A

Deep-Dive with AI

Documents11501 Series Prod Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IMSA-11501S-60A-GFN1	IMSA-115 Series

Cable End Type	Notched	Notched
Connector/Contact Type	Contacts, Bottom	Contacts, Bottom
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	0.5 A	0.5 A
Features	Solder Retention	Solder Retention
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Height Above Board [z]	3.4 mm	3.4 mm
Height Above Board [z]	0.134 in	0.134 in
Housing Color	-	Black
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	60	8 - 60
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination	Solder	Solder
Voltage Rating	50 V	50 V

IMSA-115 Series

CONN FFC BOTTOM 25POS 0.5MM R/A

Part	Housing Material	Connector/Contact Type	FFC, FCB Thickness	Termination	Height Above Board [z]	Height Above Board [z]	Contact Finish	Housing Color	Pitch [x]	Pitch [x]	Flat Flex Type	Mounting Type	Features	Current Rating (Amps)	Voltage Rating	Cable End Type	Contact Material	Material Flammability Rating	Number of Positions
IRISO USA Inc. IMSA-11501S-25B-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold	Black	0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0
IRISO USA Inc. IMSA-11501S-08C-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold		0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0	8
IRISO USA Inc. IMSA-11501S-60A-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold		0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0	60
IRISO USA Inc. IMSA-11501S-32B-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold	Black	0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0
IRISO USA Inc. IMSA-11501S-45B-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold	Black	0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0	45
IRISO USA Inc. IMSA-11501S-08D-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold		0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0	8
IRISO USA Inc. IMSA-11501S-60B-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold	Black	0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0	60
IRISO USA Inc. IMSA-11501S-45A-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold		0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0	45
IRISO USA Inc. IMSA-11501S-35B-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold	Black	0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0	35
IRISO USA Inc. IMSA-11501S-32A-GFN1	Liquid Crystal Polymer (LCP)	Contacts, Bottom	0.3 mm	Solder	3.4 mm	0.134 in	Gold		0.5 mm	0.02 in	FFC, FPC	Surface Mount, Right Angle	Solder Retention	0.5 A	50 V	Notched	Copper Alloy	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.98
		10	$ 2.53
		25	$ 2.37
		50	$ 2.26
		100	$ 2.15
		250	$ 2.02
		500	$ 1.92
	Tape & Reel (TR)	1500	$ 1.78
		3000	$ 1.69
		4500	$ 1.65

Description

General part information

IMSA-115 Series

60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

11501 Series Prod Spec

Datasheet
