0701011
ObsoletePhoenix Contact
CONN TERM BLK FEED THRU 6-20 AWG
0701011
ObsoletePhoenix Contact
CONN TERM BLK FEED THRU 6-20 AWG
Description
General part information
0701011

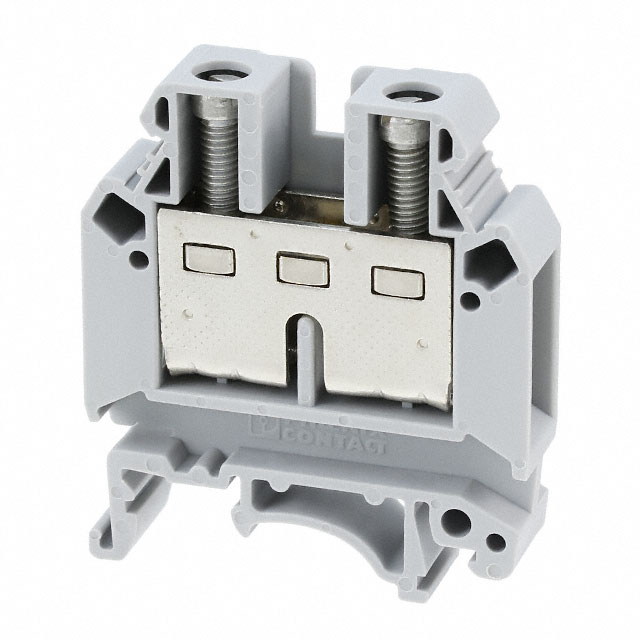

Terminal Block Connector 2 Position Feed Through Gray 6-20 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 0701011 |
|---|---|
| Color | Gray |
| Current - IEC | 70 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 14 mm |
| Terminal Width | 10.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 690 V |
| Wire Gauge or Range - AWG (Max) | 20 AWG |
| Wire Gauge or Range - AWG (Min) | 6 AWG |
| Wire Gauge or Range - mm² (Maximum) | 16 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
