142680-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.197 2POS BROWN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 0.197 2POS BROWN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	142680-1	142680 Series

Color	Brown	Brown, White
For Use With/Related Products	0.197" (5.00mm) Quick Connects	0.197" (5.00mm) Quick Connects
Gender	Female, Receptacle	Female, Receptacle
Material	Nylon	Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Stacking Direction	Side to Side	Side to Side
Style	Housing	Housing
Terminal Size	0.197 in	0.197 in
Terminal Size	5 mm	5 mm
Terminal Type	Disconnect, Quick Connect	Disconnect, Quick Connect

CONN RCPT HSG 0.197 2POS BROWN

Part	For Use With/Related Products	Terminal Size	Terminal Size	Note	Number of Positions	Stacking Direction	Mounting Type	Color	Style	Material	Terminal Type	Gender
TE Connectivity AMP Connectors 142680-1	0.197" (5.00mm) Quick Connects	0.197 in	5 mm	Contacts Not Included	2	Side to Side	Free Hanging (In-Line)	Brown	Housing	Nylon	Disconnect, Quick Connect	Female, Receptacle
TE Connectivity AMP Connectors 142680-9	0.197" (5.00mm) Quick Connects	0.197 in	5 mm	Contacts Not Included	2	Side to Side	Free Hanging (In-Line)	White	Housing	Nylon	Disconnect, Quick Connect	Female, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

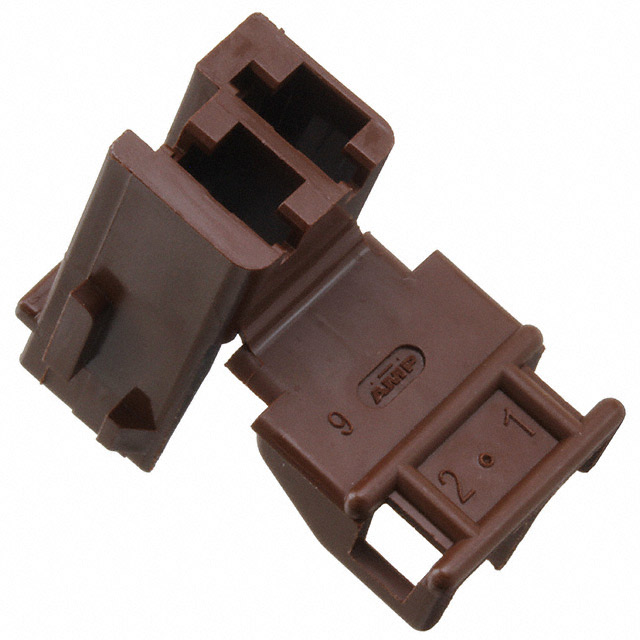

2 Position Housing Connector Female, Receptacle Brown 0.197" (5.00mm)
