Description
General part information

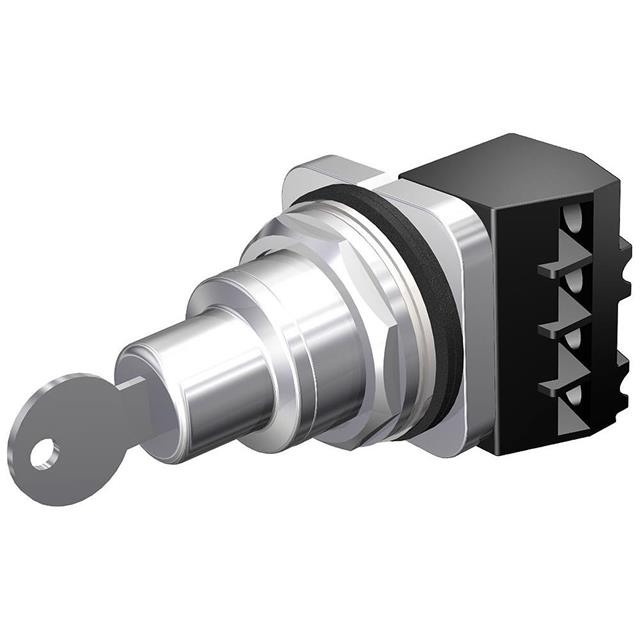

52SC6CZA1
Keylock Switch 3 Position DPST-NO/NC 60A 110 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 52SC6CZA1 |
|---|---|
| Actuator Type | Flat Key |
| Circuit | DPST-NO/NC |
| Current Rating | 60 A |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Removable Positions | Center, Left |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 110 V |
