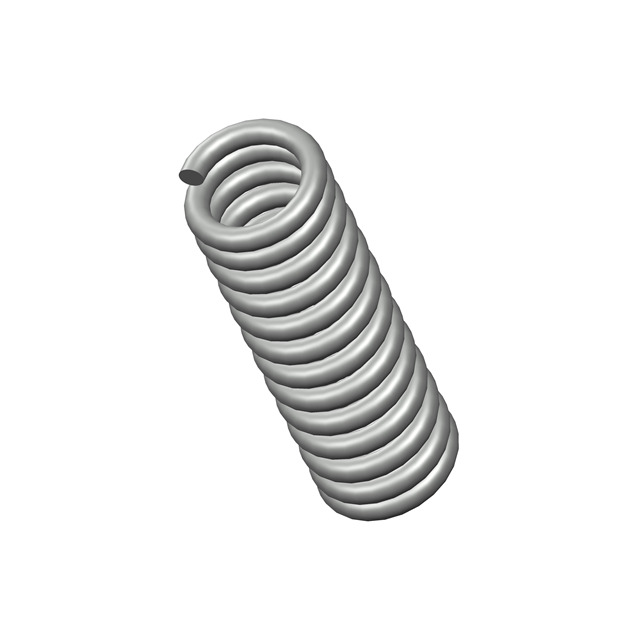

52CS
ActiveCentury Spring Corp
COMP HARD DRAWN 0.875" 2.750"
52CS
ActiveCentury Spring Corp
COMP HARD DRAWN 0.875" 2.750"
Description
General part information
52CS
COMP HARD DRAWN 0.875" 2.750"
Technical Specifications
Parameters and characteristics for this part
| Specification | 52CS |
|---|---|
| Diameter - Inside | 0.579 in |
| Diameter - Outside | 0.875 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 2.75 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 163 lbs/in |
| Type | Compression |
| Wire Diameter | 0.148 in |
