B82475A1682M000
ActiveEPCOS - TDK Electronics
FIXED IND 6.8UH SMD
B82475A1682M000
ActiveEPCOS - TDK Electronics
FIXED IND 6.8UH SMD
Description
General part information
B82475A1682M000

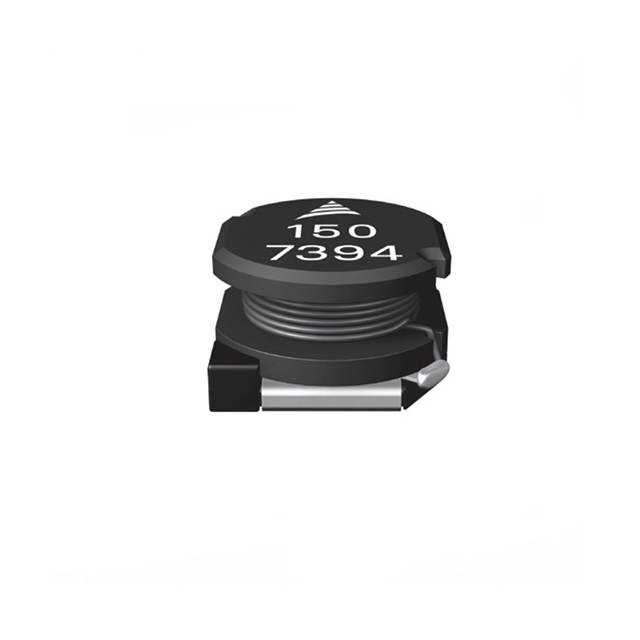

6.8 µH Unshielded Drum Core, Wirewound Inductor Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82475A1682M000 |
|---|---|
| Height - Seated (Max) | 0.228 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.37 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
