44-NKA28H-CAO
ActiveVisual Communications Company - VCC
PMI .250" LED 28V TAB CLEAR AMBE
44-NKA28H-CAO
ActiveVisual Communications Company - VCC
PMI .250" LED 28V TAB CLEAR AMBE
Description
General part information
44-NKA28H-CAO

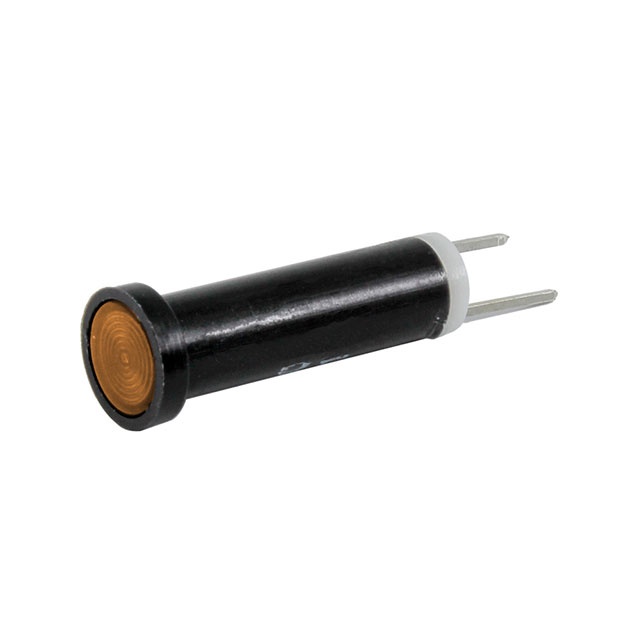

LED Panel Indicator Amber Clear 15° 28V 16.5mA PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | 44-NKA28H-CAO |
|---|---|
| Current | 16.5 mA |
| Lamp Color | Amber |
| Lens Color | Amber |
| Lens Diameter | 8.5 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 3600 mcd |
| Panel Cutout Dimension | 0.25 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | PC Pin |
| Type | LED |
| Viewing Angle | 15 ° |
| Voltage | 28 V |
| Wavelength - Peak | 592 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
