25074 BK199
ActiveALPHA WIRE

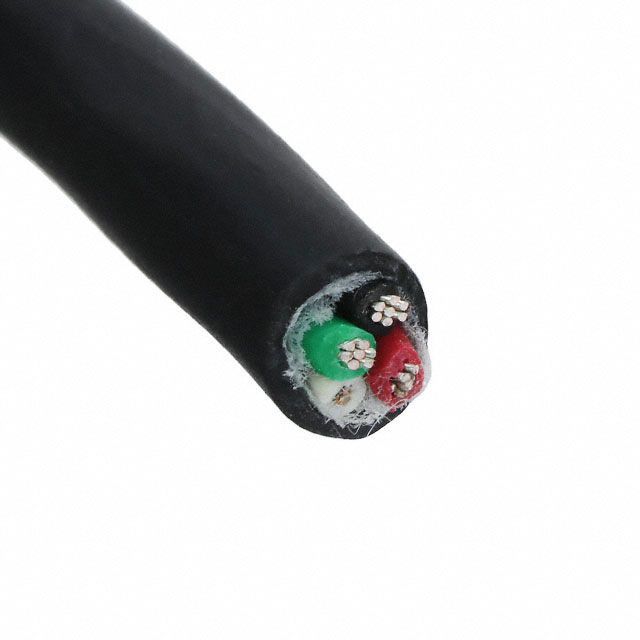

CABLE 4COND 16AWG BLACK 1000'
Deep-Dive with AI
Search across all available documentation for this part.
25074 BK199
ActiveALPHA WIRE
CABLE 4COND 16AWG BLACK 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25074 BK199 | 25074 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 19 | 19 |
| Conductor Strand [custom] | 0.0117 in | 0.0117 in |
| Features | Rip Cord, Biological Compatibility | Rip Cord, Biological Compatibility |
| Jacket (Insulation) Diameter [diameter] | 7.32 mm | 7.32 mm |
| Jacket (Insulation) Diameter [diameter] | 0.288 in | 0.288 in |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Black, Slate |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Number of Conductors | 4 | 4 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Voltage | 300 V | 300 V |
| Wire Gauge | 16 AWG | 16 AWG |
25074 Series
CABLE 4COND 16AWG BLACK 1000'
| Part | Conductor Material | Wire Gauge | Conductor Insulation | Features | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length | Jacket (Insulation) Material | Number of Conductors | Voltage | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25074 BK199 | Copper, Tinned | 16 AWG | Poly-Vinyl Chloride (PVC) | Biological Compatibility, Rip Cord | -30 ░C | 90 °C | ISO 10993, UL Style 20668 | Black | 7.32 mm | 0.288 in | Multi-Conductor | 1000 ft | 304.8 m | Polyurethane (PU) | 4 | 300 V | 19 | 0.0117 in |
ALPHA WIRE 25074 SL199 | Copper, Tinned | 16 AWG | Poly-Vinyl Chloride (PVC) | Biological Compatibility, Rip Cord | -30 ░C | 90 °C | ISO 10993, UL Style 20668 | Slate | 7.32 mm | 0.288 in | Multi-Conductor | 1000 ft | 304.8 m | Polyurethane (PU) | 4 | 300 V | 19 | 0.0117 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 5.39 | |
Description
General part information
25074 Series
4 Conductor Multi-Conductor Cable Black 16 AWG 1000.0' (304.8m)
