1046274-1

Active

TE Connectivity Aerospace, Defense and Marine

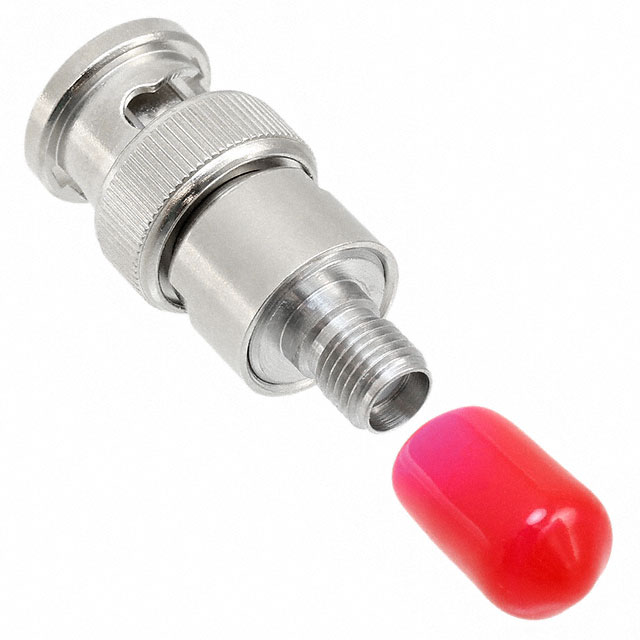

CONN ADAPT BNC PLUG TO SMA JACK

Deep-Dive with AI

Search across all available documentation for this part.

1046274-1

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT BNC PLUG TO SMA JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1046 Series

Adapter Coaxial Connector BNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1046274-1	1046 Series

Adapter Series	BNC to SMA	BNC to SMA, OSM to OSM
Adapter Series	-	OS-2.9
Adapter Series	-	OS-50
Adapter Type	Plug to Jack	Jack to Jack, Plug to Jack
Body Finish	Nickel; Passivated	Nickel; Passivated, Gold
Body Material	Brass, Stainless Steel	Stainless Steel, Brass
Cable Group	-	RD-316, RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Connector Style	-	SMA
Connector Type	-	Female Socket, Jack, Male Pin, Plug
Contact Termination	-	Solder Cup, Solder
Conversion Type	Between Series	Between Series, Same Series
Convert From (Adapter End)	BNC Plug, Male Pin	BNC Plug, Male Pin, Female Socket, SMA Jack, BNC Jack
Convert From (Adapter End)	-	2.4 mm
Convert To (Adapter End)	SMA Jack, Female Socket	OS-2.9 Jack, Female Socket, SMA Jack, Female Socket, SMA Plug, Male Pin
Convert To (Adapter End)	-	2.92 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded	Bayonet Lock, Threaded
Features	-	Extended Insulation
Frequency - Max [Max]	4 GHz	4 - 18 GHz
Housing Color	-	Silver, Gold
Impedance	50 Ohms	50 Ohms
Includes	-	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Insertion Loss	-	0.3 dB
Mating Cycles	-	500
Mounting Feature	-	Flange, Bulkhead - Front Side Nut, Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	-	1
Operating Temperature	-	105 - 125 °C
Operating Temperature	-	-65 ░C
Shield Termination	-	Solder, Crimp
Style	Straight	Straight
Voltage Rating	-	250 - 335 V

1046 Series

CONN SMA JACK STR 50 OHM SOLDER

Part	Features	Voltage Rating	Frequency - Max [Max]	Insertion Loss	Mating Cycles	Housing Color	Contact Termination	Impedance	Center Contact Plating	Connector Type	Body Material	Number of Ports	Dielectric Material	Connector Style	Shield Termination	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Cable Group	Mounting Type	Conversion Type	Style	Convert From (Adapter End)	Center Gender	Adapter Type	Convert To (Adapter End)	Convert To (Adapter End)	Adapter Series [Max]	Adapter Series [Min]	Adapter Series	Body Finish	Convert From (Adapter End)	Fastening Type	Includes
TE Connectivity Aerospace, Defense and Marine 1046232-1	Extended Insulation	335 V	16 GHz	0.3 dB	500	Silver	Solder Cup	50 Ohms	Gold	Female Socket, Jack	Stainless Steel	1	Polytetrafluoroethylene (PTFE)	SMA	Solder	Beryllium Copper	125 °C	-65 ░C	Flange
TE Connectivity Aerospace, Defense and Marine 1046251-1		250 VDC			500	Silver	Solder	50 Ohms	Gold	Male Pin, Plug	Stainless Steel	1	Polytetrafluoroethylene (PTFE)	SMA	Crimp	Beryllium Copper	105 ░C	-65 ░C		RD-316	Free Hanging (In-Line), Right Angle
TE Connectivity Aerospace, Defense and Marine 1046295-1								50 Ohms	Gold		Stainless Steel		Polytetrafluoroethylene (PTFE)			Beryllium Copper					Free Hanging (In-Line)	Between Series	Straight	2.4 mm	Female to Female	Jack to Jack	2.92 mm	OS-2.9 Jack, Female Socket	OS-2.9	OS-50
TE Connectivity Aerospace, Defense and Marine 1046274-1			4 GHz					50 Ohms	Gold		Brass, Stainless Steel		Polytetrafluoroethylene (PTFE)			Beryllium Copper					Free Hanging (In-Line)	Between Series	Straight			Plug to Jack		Female Socket, SMA Jack			BNC to SMA	Nickel; Passivated	BNC Plug, Male Pin	Bayonet Lock, Threaded
TE Connectivity Aerospace, Defense and Marine 1046276-1		335 V	18 GHz		500	Gold	Solder	50 Ohms	Gold	Female Socket, Jack	Stainless Steel	1	Polytetrafluoroethylene (PTFE)	SMA	Solder	Beryllium Copper	105 ░C	-65 ░C	Bulkhead - Front Side Nut	RG-405 (.085" Semi Rigid)												Gold			1 Connector, 1 Contact, 1 Lockwasher, 1 Nut
TE Connectivity Aerospace, Defense and Marine 1046273-1			18 GHz					50 Ohms	Gold		Stainless Steel		Polytetrafluoroethylene (PTFE)			Beryllium Copper	125 °C	-65 ░C	Bulkhead			Same Series	Straight		Female to Female	Jack to Jack		Female Socket, SMA Jack			OSM to OSM		Female Socket, SMA Jack		1 Connector, 1 Lockwasher, 1 Nut
TE Connectivity Aerospace, Defense and Marine 1046248-1			18 GHz					50 Ohms	Gold		Stainless Steel		Polytetrafluoroethylene (PTFE)			Beryllium Copper			Bulkhead			Same Series	Straight		Female to Female	Jack to Jack		Female Socket, SMA Jack			OSM to OSM	Gold	Female Socket, SMA Jack
TE Connectivity Aerospace, Defense and Marine 1046243-1			4 GHz					50 Ohms	Gold		Brass, Stainless Steel		Polytetrafluoroethylene (PTFE)			Beryllium Copper	125 °C	-65 ░C			Free Hanging (In-Line)	Between Series	Straight			Plug to Jack		Male Pin, SMA Plug			BNC to SMA	Nickel; Passivated	BNC Jack, Female Socket	Bayonet Lock, Threaded
TE Connectivity Aerospace, Defense and Marine 1046286-1		335 V	18 GHz	0.3 dB	500	Gold	Solder	50 Ohms	Gold	Female Socket, Jack	Stainless Steel	1	Polytetrafluoroethylene (PTFE)	SMA	Solder	Beryllium Copper	105 ░C	-65 ░C		RG-405 (.085" Semi Rigid)	Free Hanging (In-Line)											Gold
