633-062-663-045

Active

EDAC Inc.

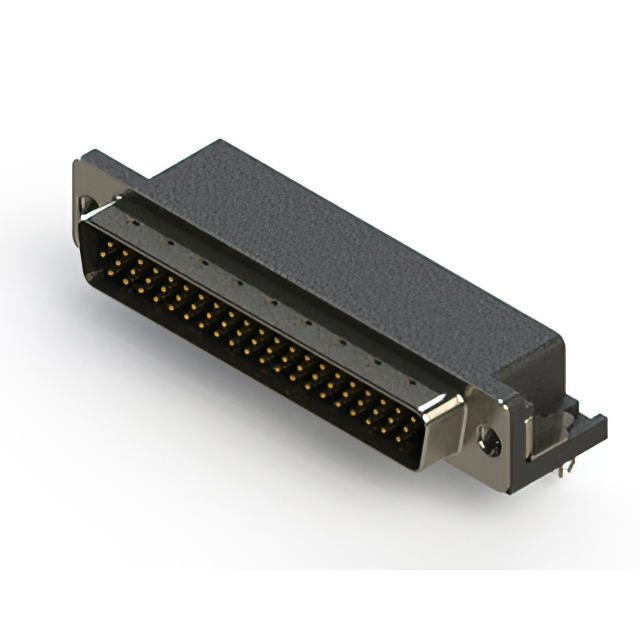

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-062-663-045

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-062-663-045

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

633-062 Series

Part	Connector Type	Connector Style	Flange Feature	Current Rating (Amps)	Number of Rows	Material Flammability Rating	Shell Material, Finish	Number of Positions	Contact Type	Contact Finish	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Backset Spacing	Backset Spacing	Contact Material	Features	Termination	Mounting Type	Contact Finish Thickness	Color	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 633-062-263-543	Male Pins Plug	D-Sub High Density	Female Screwlock (4-40) Mating Side	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	125 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 633-062-263-032	Male Pins Plug	D-Sub High Density	Housing/Shell (4-40)	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	85 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole	Flash	Black Blue
EDAC Inc. 633-062-263-050	Male Pins Plug	D-Sub High Density	4-40	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	85 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 633-062-363-013	Male Pins Plug	D-Sub High Density	Female Screwlock (4-40) Mating Side	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	85 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole			15 µin	0.38 µm
EDAC Inc. 633-062-663-045	Male Pins Plug	D-Sub High Density	Housing/Shell (M3)	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	85 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole			30 Áin	0.76 Ám
EDAC Inc. 633-062-263-051	Male Pins Plug	D-Sub High Density	Housing/Shell (Unthreaded)	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	85 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 633-062-663-511	Male Pins Plug	D-Sub High Density	Housing/Shell (Unthreaded)	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	125 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole			30 Áin	0.76 Ám
EDAC Inc. 633-062-263-552	Male Pins Plug	D-Sub High Density	Housing/Shell (4-40)	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	125 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 633-062-263-531	Male Pins Plug	D-Sub High Density	Housing/Shell (Unthreaded)	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	125 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 633-062-663-532	Male Pins Plug	D-Sub High Density	Housing/Shell (4-40)	3 A	3	UL94 V-0	Nickel Plated Steel	62	Signal	Gold	4	-55 °C	125 °C	Polyester Thermoplastic	8.89 mm	0.35 in	Copper Alloy	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Board Edge Right Angle Through Hole			30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 13.09
Newark	Each	1	$ 15.49
		100	$ 12.67
		250	$ 11.62
		500	$ 10.72
		1000	$ 9.13

Description

General part information

633-062 Series

62 Position D-Sub, High Density Plug, Male Pins Connector
