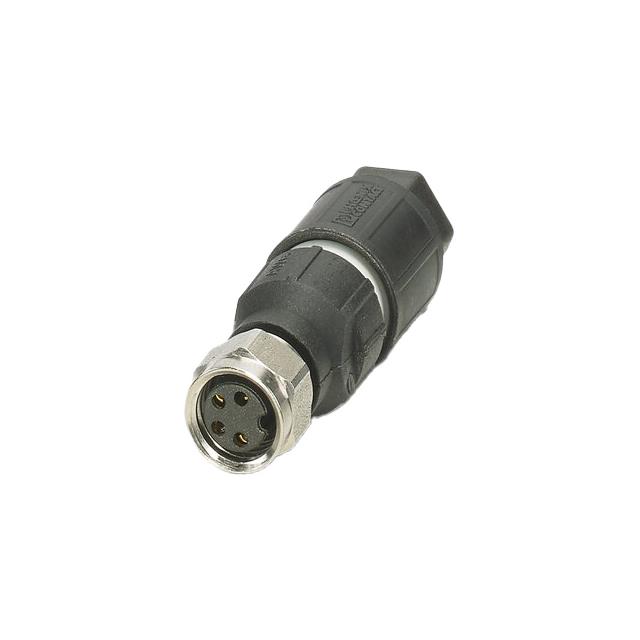

Specification	1426316

Cable Opening (Max)	0.197 in
Cable Opening (Min)	0.098 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP65, IP67
Insert Material	Thermoplastic Polyurethane, Glass Filled, TPU
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Metal
Shell Material	Stainless Steel
Shell Size - Insert	M8-4
Shielding	Shielded
Termination	Screw
Voltage Rating	30 V
Voltage Rating (Type)	DC, AC
