927775-3
ActiveTE Connectivity AMP Connectors

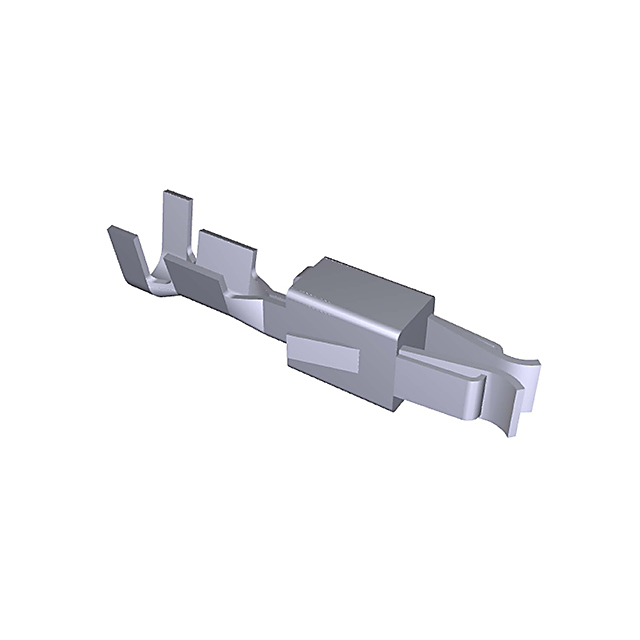

CONN SOCKET 17-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
927775-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET 17-20AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 927775-3 | 927775 Series |
|---|---|---|
| Contact Finish | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness | 31.5 µin | 31.5 µin |
| Contact Finish Thickness | 0.8 µm | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
927775 Series
CONN SOCKET 17-20AWG CRIMP TIN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Type | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Contact Termination |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 927775-3 | 17 AWG | 20 AWG | Tin-Lead | Power | Socket | 31.5 µin | 0.8 µm | Crimp |
TE Connectivity AMP Connectors 927775-1 | 17 AWG | 20 AWG | Tin | Power | Socket | 31.5 µin | 0.8 µm | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.29 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 4000 | $ 0.16 | ||
| 8000 | $ 0.15 | |||
| 12000 | $ 0.13 | |||
| 28000 | $ 0.13 | |||
Description
General part information
927775 Series
Socket Contact Tin-Lead 17-20 AWG Crimp Power
