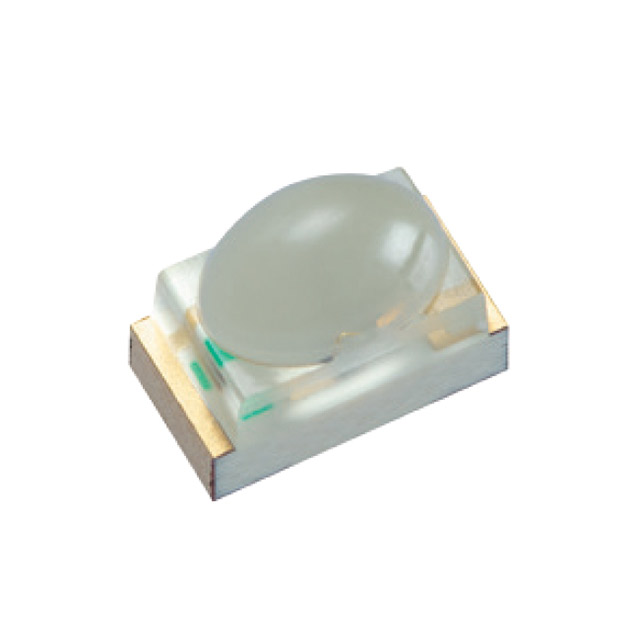

XZVG79W
ActiveSunLED
LED GREEN CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZVG79W |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 3.2 mm |
| Lens Color | Colorless |
| Lens Size [x] | 3 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 148 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.8 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 35 °, 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 0.17 | |
| 1000 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| 5000 | $ 0.11 | |||
| 12500 | $ 0.10 | |||
| 25000 | $ 0.10 | |||
| 50000 | $ 0.09 | |||
Description
General part information
XZVG79W
Green 570nm LED Indication - Discrete 2.1V 2-SMD, No Lead
