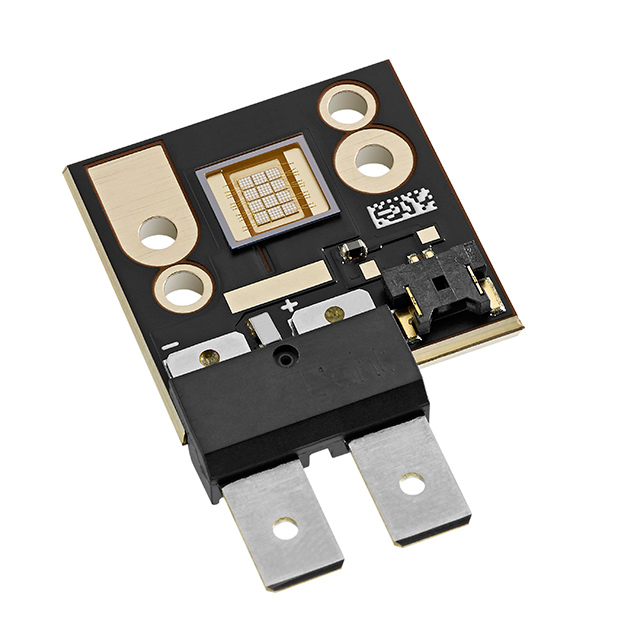

CBM-120-UV-C31-J380-21
ActiveLuminus Devices Inc.
EMITTER UV 387NM 30A MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBM-120-UV-C31-J380-21
ActiveLuminus Devices Inc.
EMITTER UV 387NM 30A MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CBM-120-UV-C31-J380-21 | CBM-120 Series |
|---|---|---|
| Current - DC Forward (If) (Max) [Max] | 18 A | 18 - 24 A |
| Mounting Type | Chassis Mount | Chassis Mount, Screw Mount |
| Operating Temperature | 120 °C | 120 - 125 °C |
| Orientation | Top View | Top View |
| Package / Case | Module | Module |
| Type | Ultraviolet (UV) | Ultraviolet (UV) |
| Voltage - Forward (Vf) (Typ) | 3.6 V | 3.5 - 3.6 V |
| Wavelength | 380 nm | 380 - 405 nm |
CBM-120 Series
EMITTER UV 387NM 30A MODULE
| Part | Voltage - Forward (Vf) (Typ) | Orientation | Current - DC Forward (If) (Max) [Max] | Wavelength | Operating Temperature | Mounting Type | Package / Case | Type |
|---|---|---|---|---|---|---|---|---|
Luminus Devices Inc. CBM-120-UV-C31-J380-21 | 3.6 V | Top View | 18 A | 380 nm | 120 °C | Chassis Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C31-J380-22 | 3.6 V | Top View | 18 A | 380 nm, 385 nm | 120 °C | Chassis Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-X31-M380-22 | 3.5 V | Top View | 24 A | 380 nm | 125 ¯C | Chassis Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C31-I400-21 | 3.6 V | Top View | 18 A | 400 nm | 120 °C | Chassis Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C14-I395-21 | 3.6 V | Top View | 18 A | 395 nm | 120 °C | Screw Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C14-I380-22 | 3.6 V | Top View | 18 A | 380 nm, 385 nm | 120 °C | Screw Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C14-J390-21 | 3.6 V | Top View | 18 A | 390 nm | 120 °C | Screw Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C31-J390-22 | 3.6 V | Top View | 18 A | 390 nm, 395 nm | 120 °C | Chassis Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C14-J395-21 | 3.6 V | Top View | 18 A | 395 nm | 120 °C | Screw Mount | Module | Ultraviolet (UV) |
Luminus Devices Inc. CBM-120-UV-C14-I405-21 | 3.6 V | Top View | 18 A | 405 nm | 120 °C | Screw Mount | Module | Ultraviolet (UV) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 167.75 | |
Description
General part information
CBM-120 Series
Ultraviolet (UV) Emitter 380nm 3.6V 18A Module
Documents
Technical documentation and resources
