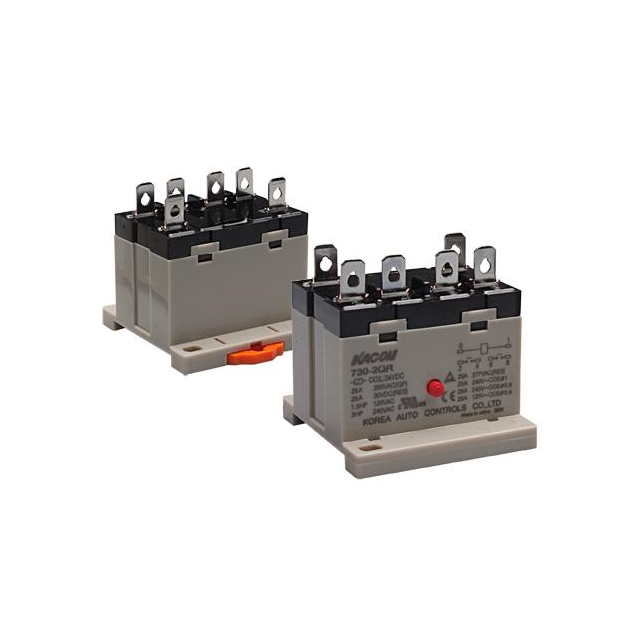

730-2QR-24VDC

Active

Kacon

RELAY GEN PURPOSE DPST 25A 24V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE DPST 25A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE DPST 25A 110V

Part	Coil Current	Contact Material	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Switching Voltage	Termination Style	Relay Type	Contact Rating (Current)	Contact Form	Release Time	Operate Time
Kacon 730-2QR-110VAC	24.5 mA	Silver Alloy	DIN Rail	Test Button	-10 °C	60 °C	110 VAC/DC	30 VDC, 277 VAC	Quick Connect - 0.250" (6.3mm)	General Purpose	25 A	DPST-NO (2 Form A)	30 ms	30 ms
Kacon 730-2QR-24VDC		Silver Alloy	DIN Rail	Test Button	-10 °C	60 °C	24 VDC	30 VDC, 277 VAC	Quick Connect - 0.250" (6.3mm)	General Purpose	25 A	DPST-NO (2 Form A)	30 ms	30 ms
Kacon 730-2QR-220VAC	11.8 mA	Silver Alloy	DIN Rail	Test Button	-10 °C	60 °C	220 VAC/DC	30 VDC, 277 VAC	Quick Connect - 0.250" (6.3mm)	General Purpose	25 A	DPST-NO (2 Form A)	30 ms	30 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.76

General part information

General Purpose Relay DPST-NO (2 Form A) 24VDC Coil DIN Rail

Technical documentation and resources
