A79038-001

Active

Omnetics

18 POSITION DUAL ROW MALE NANO-M

Search across all available documentation for this part.

Active

Omnetics

18 POSITION DUAL ROW MALE NANO-M

Technical Specifications

Parameters and characteristics for this part

Specification	A79038-001

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Natural
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Row Spacing - Mating	0.03 in
Row Spacing - Mating	0.76 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Mating	Features	Connector Type	Contact Material	Termination	Number of Positions	Style	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Shrouding	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Positions Loaded
Omnetics A79038-001	0.025 in	0.64 mm	Circular	Gold	Guide Pin	Header	Beryllium Copper	Solder	18	Board to Cable/Wire	0.173 in	4.4 mm	0.03 in	0.76 mm	Through Hole	Shrouded - 4 Wall	Push-Pull	1.27 µm	50 µin	2	Male Pin	Natural	-55 °C	125 °C	2.54 mm	0.1 in	Thermoplastic	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

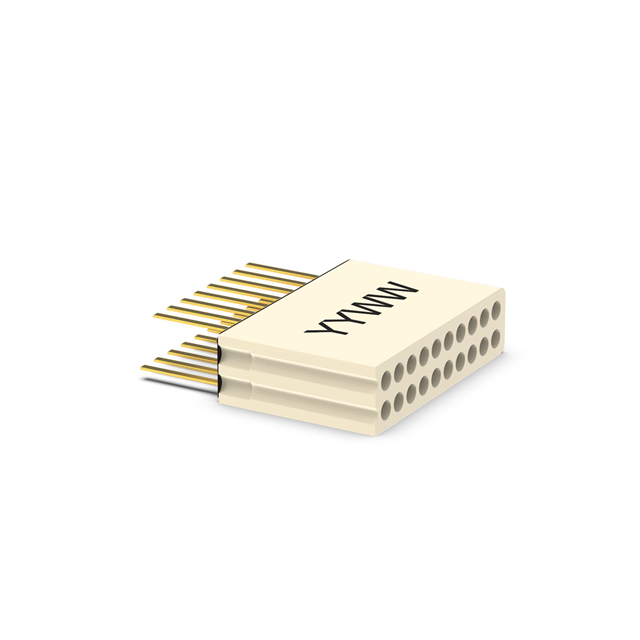

Connector Header Through Hole 18 position 0.025" (0.64mm)
