1408148-1

Active

TE Connectivity AMP Connectors

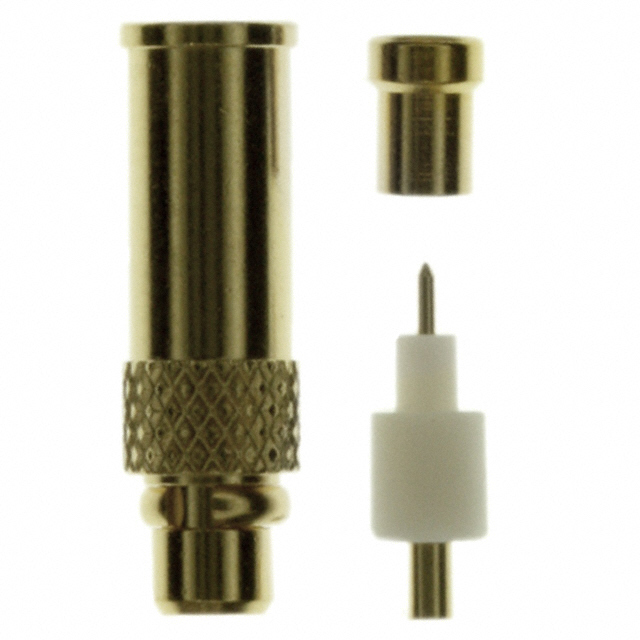

CONN MMCX PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MMCX PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN MMCX PLUG STR 50 OHM CRIMP

Part	Frequency - Max [Max]	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Number of Ports	Mating Cycles	Contact Termination	Impedance	Connector Style	Voltage Rating	Mounting Type	Includes	Center Contact Plating	Cable Group	Cable Group
TE Connectivity AMP Connectors 1408148-1	6000 MHz	Snap-On	Male Pin, Plug	155 °C	-55 °C	Crimp	1	500	Crimp	50 Ohms	MMCX	170 V	Free Hanging (In-Line)	1 Connector, 1 Contact, 1 Ferrule	Gold	196	RG-178

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
